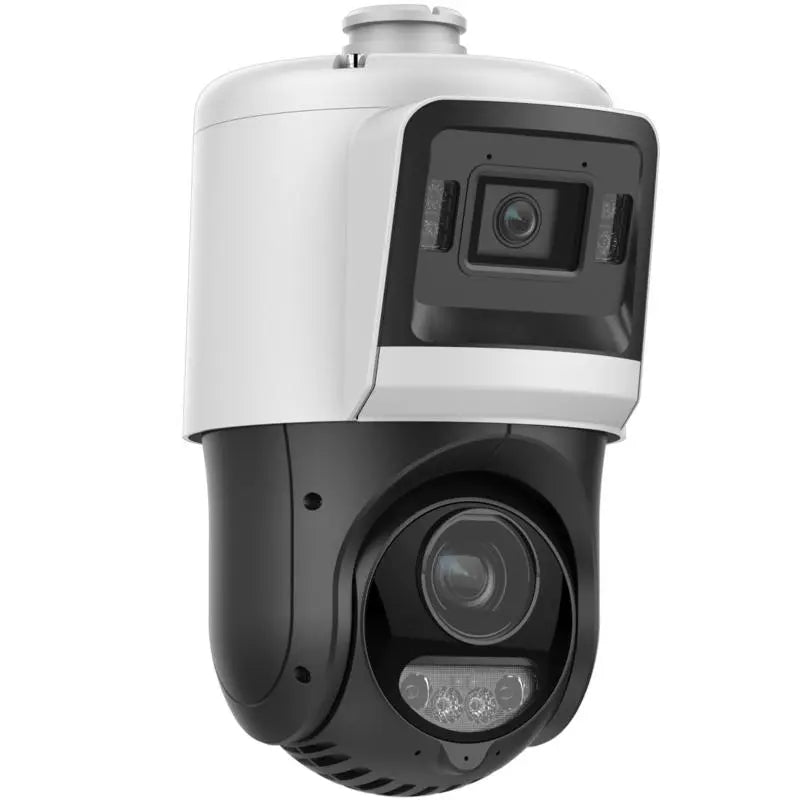

The DS-2SE4C425MWG-E/14 TandemVu network speed dome combines a fixed 4MP ColorVu bullet channel with a separate 4MP PTZ channel, allowing security teams to maintain wide-area awareness while simultaneously viewing detailed activity at long range.
The fixed bullet channel uses an F1.0 aperture and white light illumination up to 30 meters to support full-color low-light monitoring. The PTZ channel uses Powered-by-DarkFighter technology, 25× optical zoom, 16× digital zoom, and infrared illumination up to 100 meters for detailed observation across large outdoor sites.
Deep learning-based human and vehicle classification supports line crossing, intrusion, region entrance, and region exit events. Smart linkage functions can coordinate the panoramic channel and PTZ channel for linked tracking capture, while face capture and regional people counting add advanced monitoring capabilities for large commercial properties.
Two built-in microphones and an integrated speaker support real-time two-way audio. The PTZ channel also supports strobe light and audio alarm linkage for active deterrence. Additional features include Audio I/O, alarm I/O, onboard microSD storage up to 512 GB, IEEE 802.3at PoE+, ONVIF Profile S/G/T compatibility, and IP67 weather protection.
Dual-Channel PTZ Monitoring Benefits
-
Wide View and Close-Up Detail – Separate 4MP bullet and 4MP PTZ channels provide simultaneous situational awareness and zoomed observation.
-
25× Optical Zoom – The PTZ channel supports detailed viewing across expansive parking areas, yards, campuses, and perimeter zones.
-
Dual Low-Light Technologies – ColorVu supports full-color monitoring on the bullet channel, while DarkFighter improves low-light performance on the PTZ channel.
-
Linked Tracking Support – Smart linkage coordinates the two channels for manual tracking, linked tracking capture, and tracking in turn.
-
Two-Way Audio – Dual built-in microphones and an integrated speaker support real-time listening and communication.
-
Proactive Event Response – Strobe light and audio alarm linkage provide active warning capabilities through the PTZ channel.
Recommended Applications
- Logistics and Distribution Yards
- Warehouse Perimeter Areas
- Industrial Facility Campuses
- Large Commercial Parking Lots
- School and University Campuses
- Business Park Roadways
- Transportation Facilities
- Municipal Properties
- Large Apartment Communities
- Critical Outdoor Access Zones
| Camera |
| Image Sensor |
[Bullet channel]1/2.8" Progressive Scan CMOS
[PTZ channel]1/2.8" Progressive Scan CMOS |
| Max. Resolution |
[Bullet channel]2560 × 1440
[PTZ channel]2560 × 1440 |
| Min. Illumination |
[Bullet channel]:0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
[PTZ channel]:Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
1 s to 1/30,000 s |
| Day & Night |
ICR |
| Zoom |
[PTZ channel]25 × optical, 16 × digital |
| Slow Shutter |
yes |
| Lens |
| Focal Length |
[Bullet channel]2.8 mm
[PTZ channel]5 to 125 mm |
| FOV |
[Bullet channel]horizontal field of view: 96.1°, vertical field of view: 52.1°, diagonal field of view: 113.3°
[PTZ channel]horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8° |
| Focus |
auto,manual,semi-auto |
| Aperture |
[Bullet channel]:F1.0
[PTZ channel]:F1.6 |
| Zoom Speed |
[PTZ channel]:approx. 2.3 s |
| Illuminator |
| Supplement Light Type |
[PTZ channel]:IR
[Bullet channel]:White Light |
| Supplement Light Range |
[PTZ channel]:up to 100 m
[Bullet channel]:up to 30 m |
| Smart Supplement Light |
Yes |
| PTZ |
| Movement Range (Pan) |
360° endless |
| Movement Range (Tilt) |
[Bullet channel]9° to 21° (manually adjust)
[PTZ channel]-15° to 90° |
| Pan Speed |
Pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s |
| Tilt Speed |
Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Pan |
yes |
| Presets |
300 |
| Preset Freezing |
yes |
| Patrol Scan |
8 patrols, up to 32 presets for each patrol |
| Pattern Scan |
4 pattern scans |
| Park Action |
preset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan |
| 3D Positioning |
yes |
| PTZ Status Display |
yes |
| Scheduled Task |
Preset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
| Power-off Memory |
yes |
| Video |
| Main Stream |
[Bullet channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream |
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream |
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression |
H.265,H.264,MJPEG |
| Video Bit Rate |
32 kbps to 16384 kbps |
| H.264 Type |
main profile,baseline profile,high profile |
| H.265 Type |
main profile |
| Scalable Video Coding (SVC) |
yes |
| Region of Interest (ROI) |
8 fixed regions for each stream |
| Audio |
| Audio Compression |
G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
| Audio Sampling Rate |
MP2L2:16 kHz, 32kHz, 48 kHz
AAC-LC:16 kHz, 32kHz, 48 kHz
PCM:8 kHz, 16 kHz, 32kHz, 48 kHz
MP3:8 kHz, 16 kHz, 32kHz, 48 kHz |
| Environment Noise Filtering |
yes |
| Network |
| Protocols |
DHCP,FTP,HTTPS,TCP/IP,ICMP,HTTP,SFTP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets |
| Simultaneous Live View |
20 |
| API |
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host |
32 |
| Security |
802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption |
| Network Storage |
NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
| Client |
iVMS-4200,VMS Platform Pro,Mobile App |
| Web Browser |
IE 11, Chrome 80+, Firefox 80+, Safari 13+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
sharpness,saturation,brightness,contrast |
| Day/Night Switch |
day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) |
True WDR |
| SNR |
＞52dB |
| Defog |
Digital defog |
| Image Stabilization |
EIS |
| Image Enhancement |
BLC,HLC,3D DNR |
| Privacy Mask |
[Bullet channel]8 programmable polygon privacy masks
[PTZ channel]24 programmable polygon privacy masks; mask color or mosaic configurable |
| Regional Focus |
yes |
| Regional Exposure |
yes |
| Interface |
| Ethernet Interface |
RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio |
Input:1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Output:1 audio output, line level, impedance: 600 Ω |
| Alarm |
1 alarm input, 1 alarm output |
| Reset |
yes |
| Built-in Microphone |
2 built-in microphones,picking up sounds in the radius up to 8 m |
| Built-in Speaker |
1 built-in speaker, with effective distance reaching max. 20 m |
| Event |
| Basic Event |
Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio exception detection |
| Smart Event |
audio exception detection,region exiting detection,region entrance detection,intrusion detection,Line crossing detection |
| Linkage |
[Bullet channel]Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording
[PTZ channel]Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, strobe light and audio alarm, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function |
| Face Capture |
Detects up to 5 faces simultaneously
Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Regional People Counting |
Supports up to 8 detection regions, and independent arming schedule and linkage method. Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection |
| Linkage and Tracking |
| Smart Linkage |
manual tracking, linked tracking capture，tracking in turn |
| General |
| Power |
12 VDC:3.33 A
PoE:IEEE 802.3at, 42.5 to 57.2 V, 0.6 A |
| Dimension |
Ø166 mm × 294.8 mm (Ø6.5" × 11.6") |
| Weight |
Approx. 3.0 kg (16.5 lb.) |
| Material |
ADC12 |
| Operating Condition |
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
| General Function |
mirror, password protection, watermark, IP address filter |
| Demist |
Demist by heating the glass |
| Approval |
| Protection |
IP67:IEC 60529-2013
TVS 6000 V lightning protection, surge protection and voltage transient protection |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2SE4C425MWG-E/14 commonly installed?
The DS-2SE4C425MWG-E/14 is commonly installed at logistics yards, warehouse campuses, industrial facilities, large parking lots, business parks, school campuses, transportation sites, and other expansive outdoor properties.
How does the TandemVu dual-channel design improve large-area monitoring?
The fixed bullet channel maintains a broad overview while the PTZ channel can zoom and move independently, allowing operators to retain situational awareness while examining distant activity in greater detail.
Is this camera suitable for large parking lots and industrial yards?
Yes. Its dual 4MP channels, 25× optical zoom, 100-meter PTZ IR range, 30-meter ColorVu white light range, and linked tracking capabilities make it suitable for expansive commercial areas.
What types of organizations may benefit from this TandemVu camera?
Warehouses, logistics operators, industrial facilities, schools, universities, municipal properties, transportation facilities, apartment communities, and large commercial sites may benefit from its combined overview and PTZ coverage.
How do ColorVu and DarkFighter work together in this camera?
The fixed bullet channel uses ColorVu technology and white light for full-color low-light monitoring, while the PTZ channel uses Powered-by-DarkFighter technology and infrared illumination for long-range nighttime observation.
Does the DS-2SE4C425MWG-E/14 support human and vehicle classification?
Yes. The camera supports deep learning-based human and vehicle classification for perimeter events including line crossing, intrusion, region entrance, and region exit detection.
Does this model support linked tracking and active deterrence?
Yes. It supports manual tracking, linked tracking capture, and tracking in turn. The PTZ channel can also trigger a strobe light and audio alarm through supported event linkage.
Does the camera support two-way audio and external audio integration?
Yes. It includes two built-in microphones and one built-in speaker for two-way audio, plus one audio input and one audio output for compatible external devices.
Does the DS-2SE4C425MWG-E/14 support local storage, PoE+, and ONVIF?
Yes. It supports microSD, microSDHC, and microSDXC cards up to 512 GB, IEEE 802.3at PoE+, and ONVIF Profile S, Profile G, and Profile T.
What are the maximum resolution and zoom capabilities of this camera?
Both the fixed bullet channel and PTZ channel support up to 2560 × 1440 resolution. The PTZ channel provides 25× optical zoom and 16× digital zoom.
