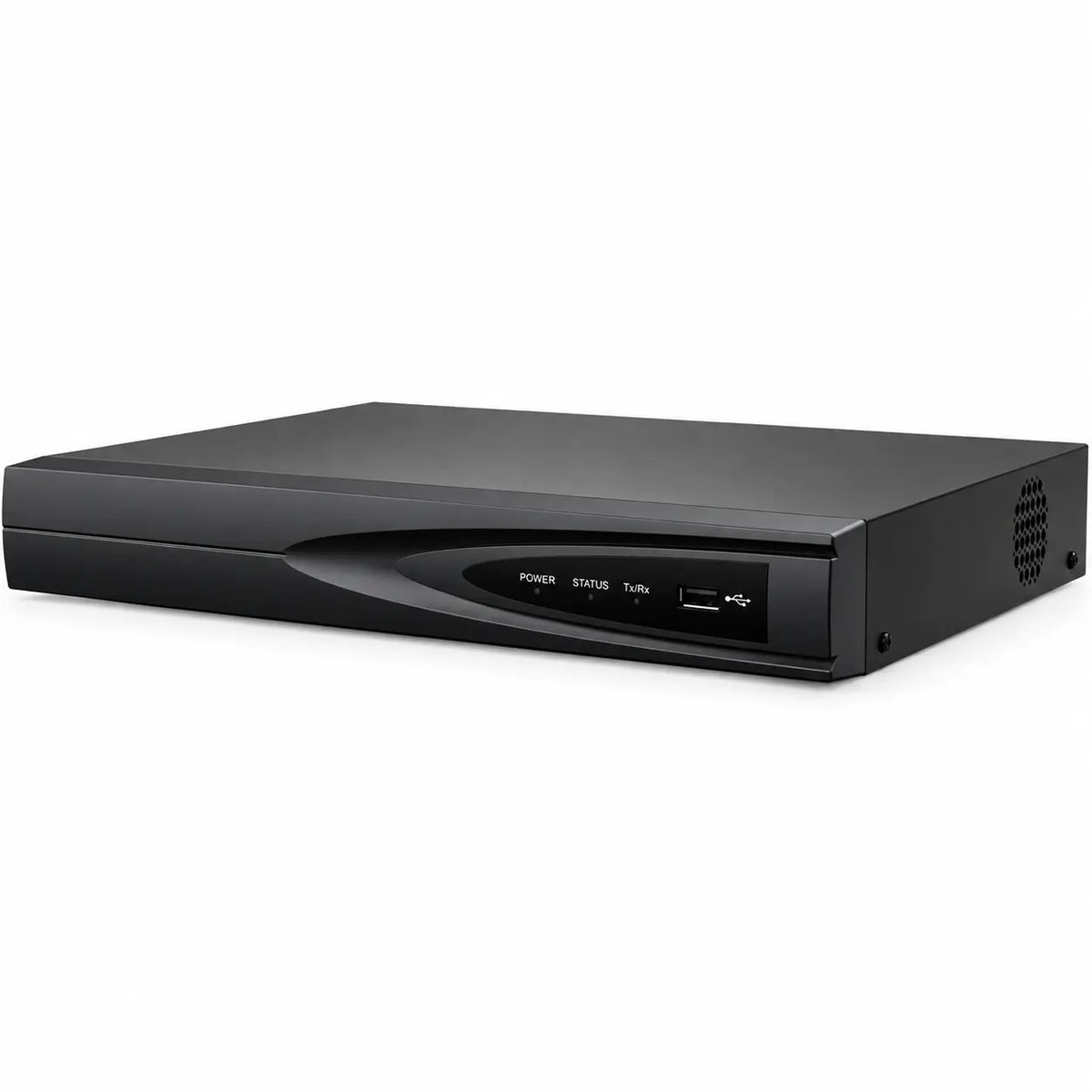

DS-7608NI-Q1/8P 8-Channel PoE NVR with 4K Output for Business
Good fit when eight cameras terminate at one location and you want simple PoE wiring, local recording, and 4K monitoring
In stock
Questions about NVR setup, storage, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
For smaller commercial sites where camera runs terminate at one recorder, the DS-7608NI-Q1/8P keeps installation straightforward with eight direct PoE camera connections and centralized local recording.
Its compact design, 4K monitor output, and human and vehicle motion analysis make it a practical option for everyday monitoring without adding more network hardware than the project needs.
Installation and Recording Benefits
- Cleaner Camera Connections – Eight built-in PoE ports provide power and network connectivity for compatible cameras.
- Focused Motion Review – Human and vehicle analysis helps narrow down more relevant motion events.
- Simple Local Storage – A single SATA bay supports local recording for smaller surveillance deployments.
- Centralized Monitoring – Keeps live viewing, recording, and playback in one compact system.
Recommended Applications
- Retail Stores
- Restaurants
- Small Offices
- Medical Offices
- Convenience Stores
- Small Warehouses
- Professional Service Locations
| Video Input | |
|---|---|
| IP Camera Inputs | Up to 8 channels |
| Incoming Bandwidth | Up to 80 Mbps |
| Outgoing Bandwidth | Up to 80 Mbps |
| Video & Recording | |
|---|---|
| Maximum Recording Resolution | Up to 8 MP |
| Recording Resolution | 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Intelligent Analytics | |
|---|---|
| Motion Detection 2.0 | Human and vehicle analysis on up to 4 channels |
| VCA Events | Supports compatible camera-side VCA events |
| Smart Search & Playback | Supported |
| Decoding & Playback | |
|---|---|
| Decoding Capacity | 1 × 8 MP, 3 × 4 MP, or 6 × 1080p at 30 fps |
| Synchronized Playback | Up to 8 channels |
| Video Output | |
|---|---|
| HDMI Output | 1 × HDMI |
| Maximum HDMI Resolution | Up to 4K, 4096 × 2160 at 30 Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 at 60 Hz |
| Video Output Mode | Simultaneous HDMI and VGA output |
| Storage | |
|---|---|
| Internal Storage | 1 × SATA interface |
| Maximum HDD Capacity | Up to 8 TB per HDD |
| PoE | |
|---|---|
| PoE Ports | 8 × RJ45 10/100 Mbps PoE ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget | Up to 75 W |
| Network | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Audio | |
|---|---|
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA interface using the audio input |
| USB | |
|---|---|
| USB Interface | 2 × USB 2.0 |
| Power | |
|---|---|
| Power Supply | 48 VDC |
| Power Consumption | ≤ 10 W without HDD and with PoE off |
| Physical & Environmental | |
|---|---|
| Chassis | Compact 1U |
| Dimensions | 320 × 240 × 48 mm (12.4 × 9.4 × 1.9 in) |
| Weight | ≤ 1 kg (2.2 lb) without HDD |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% |
Find answers to common questions about camera compatibility, channel capacity, PoE connectivity, recording, storage, remote viewing, and system installation.
What commercial projects is the DS-7608NI-Q1/8P suitable for?
The DS-7608NI-Q1/8P is designed for smaller commercial surveillance systems requiring up to eight IP cameras. Typical applications include retail stores, restaurants, offices, clinics, convenience stores, and small warehouses where direct PoE camera connections and centralized recording are useful.
Is the DS-7608NI-Q1/8P suitable for a retail store?
Its eight-camera capacity can cover selected areas such as entrances, checkout zones, stockrooms, offices, and exterior access points. Built-in PoE also helps keep smaller retail installations organized by allowing compatible cameras to connect directly to the recorder.
Can this NVR be used in restaurants or small offices?
Yes. Compatible cameras can be positioned around entrances, customer or reception areas, corridors, offices, storage rooms, and other important locations. The eight-channel limit makes it a practical fit for smaller sites with a clearly defined camera layout.
Can the DS-7608NI-Q1/8P replace an older 8-channel recorder?
It can be considered for compatible replacement projects where direct PoE connectivity, 8MP recording, or 4K local display is required. Installers should verify camera compatibility, firmware, network settings, PoE requirements, and storage needs before replacement.
Does the DS-7608NI-Q1/8P support human and vehicle detection?
Motion Detection 2.0 supports human and vehicle analysis on up to four channels. This can help operators focus on more relevant motion events instead of reviewing every general motion trigger.
Does this NVR support 4K local monitor output?
Yes. The HDMI interface supports output resolutions up to 4096 × 2160 at 30 Hz. This is the local monitor output capability and is separate from the recorder's maximum 8MP recording resolution.
Can the DS-7608NI-Q1/8P record 8MP cameras?
The recorder supports recording resolutions up to 8MP under supported configurations. System design should also account for the 80 Mbps incoming bandwidth and decoding limits when selecting camera resolution, frame rate, and bitrate.
How much storage can be installed in the DS-7608NI-Q1/8P?
The recorder provides one internal SATA interface and supports a hard drive up to 8TB. Actual video retention depends on camera count, resolution, bitrate, frame rate, compression settings, scene activity, and recording schedule.
What should installers consider when using all eight PoE ports?
The eight built-in PoE ports share a total power budget of up to 75W. Installers should calculate the power requirement of each connected camera and make sure the combined load remains within the recorder's supported PoE budget.
What are the core specifications of the DS-7608NI-Q1/8P?
The recorder supports up to eight IP cameras, includes eight built-in PoE ports, provides up to 80 Mbps incoming bandwidth, records resolutions up to 8MP, provides one SATA bay, and supports eight-channel synchronized playback.
