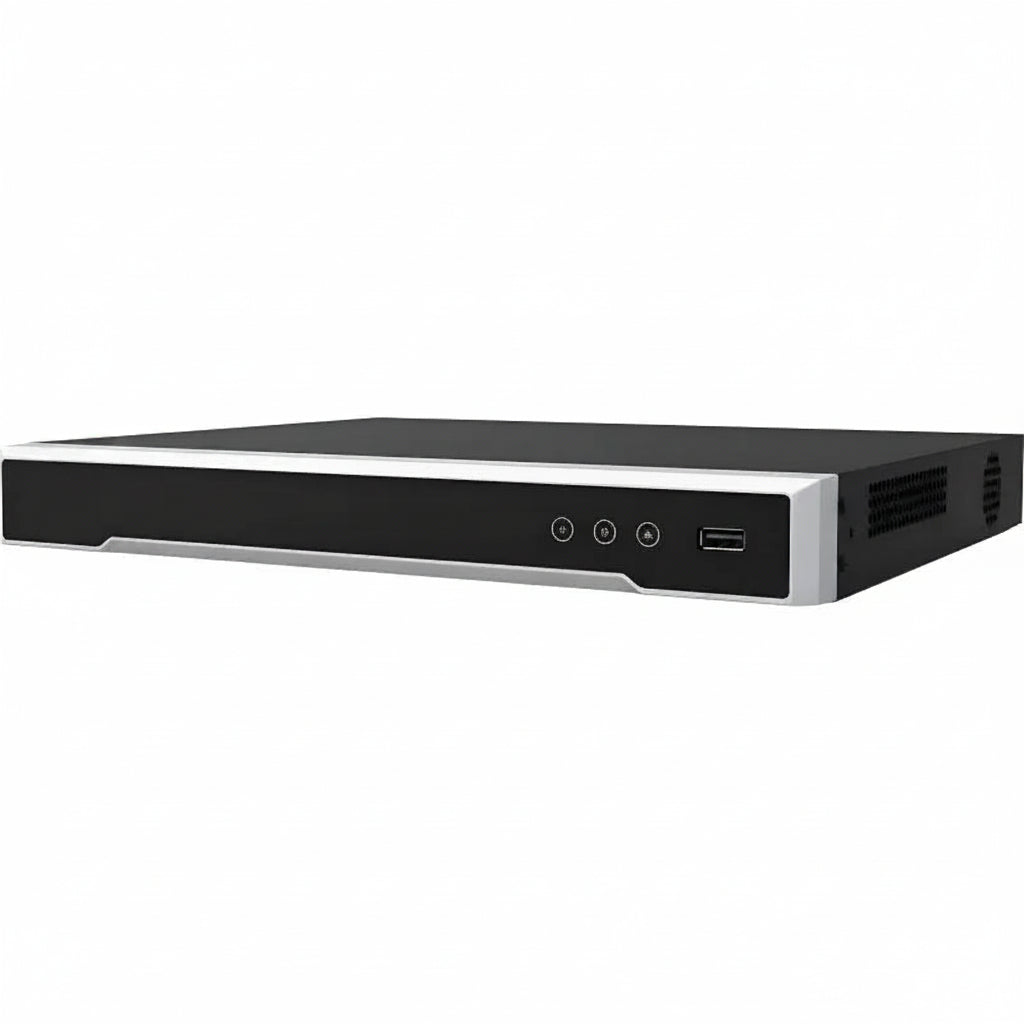

The DS-7608NI-Q2/8P is an 8-channel network video recorder with integrated PoE, designed for small to medium commercial surveillance systems that require centralized IP camera management, simplified camera connectivity, 4K local display output, and expandable recording storage.
Eight independent PoE ports allow compatible network cameras to receive power and data through a single Ethernet cable, helping simplify installation and reduce the need for separate camera power supplies. The recorder supports up to 8 IP camera inputs with incoming bandwidth up to 80 Mbps.
H.265+ video compression helps reduce storage and bandwidth requirements while supporting recording resolutions up to 8MP. HDMI output supports resolutions up to 4K, providing detailed local viewing for live monitoring, playback, camera setup, and system management.
The DS-7608NI-Q2/8P includes two SATA interfaces for expandable local storage, up to 8-channel synchronized playback, smart search and playback functions, Audio I/O, and IEEE 802.3af/at PoE support. Its compact 1U design is suitable for offices, retail locations, restaurants, small warehouses, apartment properties, and other multi-camera business environments.
Integrated PoE Recording Benefits
-
8-Channel IP Camera Support – Connects and manages up to eight compatible network cameras from one centralized recorder.
-
Eight Integrated PoE Ports – Provides network connectivity and power for compatible cameras through standard Ethernet cabling.
-
80 Mbps Incoming Bandwidth – Supports multi-camera recording across compatible high-resolution surveillance systems.
-
4K HDMI Output – Provides high-resolution local display for live video, playback, and system operation.
-
Efficient Video Compression – H.265+ compression helps manage recording bandwidth and storage usage.
-
Dual-Drive Storage Design – Two SATA interfaces support expandable local recording capacity.
Technical Specifications
-
IP Camera Inputs: Up to 8 channels
-
Integrated PoE Ports: 8 independent RJ45 PoE interfaces
-
PoE Standard: IEEE 802.3af/at
-
Total PoE Power Budget: Up to 80 W
-
Incoming Bandwidth: Up to 80 Mbps
-
Outgoing Bandwidth: Up to 80 Mbps
-
Maximum Recording Resolution: Up to 8MP
-
Decoding Capacity: Up to 1 channel at 8MP, 3 channels at 4MP, or 6 channels at 1080p
-
Video Compression: H.265+, H.265, H.264+, and H.264
-
Video Output: HDMI and VGA simultaneous output
-
Maximum HDMI Resolution: Up to 4K, 4096 × 2160
-
Synchronized Playback: Up to 8 channels
-
Internal Storage: Two SATA interfaces
-
Maximum HDD Capacity: Up to 8 TB per HDD
-
Network Interface: One RJ45 10/100 Mbps Ethernet port
-
Audio Interface: One RCA audio input and one RCA audio output
-
Two-Way Audio: Supported through the RCA audio input and output
-
USB Interface: Two USB 2.0 ports
-
Power Supply: 48 VDC
-
Chassis: Compact 1U design
Recommended Applications
- Retail Stores
- Small Office Buildings
- Restaurants and Cafes
- Small Warehouses
- Apartment Common Areas
- Medical and Professional Offices
- Convenience Stores
- Commercial Parking Areas
- Small Educational Facilities
- Eight-Camera Business Surveillance Systems
| Function |
|---|
| Motion Detection | Motion Detection 2.0 |
| Human/Vehicle Analysis | Supported (4-ch) |
| Video and Audio |
|---|
| IP Video Input | 8-ch |
| HDMI Output | 1-ch, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding |
|---|
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Decoding Capability | 1-ch @ 8 MP (30 fps) / 5-ch @ 1080p (30 fps) |
| Synchronous Playback | 8-ch |
| Recording Resolution | 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Network |
|---|
| Network Protocol | TCP/IP, DHCP, Mobile App, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE |
|---|
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 80 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface |
|---|
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General |
|---|
| Power Supply | 48V, 2.5A MAX |
| Consumption | ≤ 15 W |
| Working Temperature | -10 to +55 °C (+14 to +131 °F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U chassis |
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight | ≤ 2.6 kg (5.7 lb.) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Is this 8-channel NVR compatible with H-Series NVR Systems?
Yes. This recorder is built to work with compatible H-Series IP cameras, making it a solid choice for new installations or expanding an existing H-Series NVR System. Using compatible cameras helps simplify setup, centralize recording, and manage multiple cameras from one interface without adding separate recorders.
How many IP cameras can this NVR support?
This NVR supports up to eight IP cameras at the same time. It includes eight built-in PoE ports, so each compatible camera can receive both power and network connectivity through a single Ethernet cable. That reduces extra wiring and makes installation faster for homes and small commercial properties.
Does this NVR record in 4K resolution?
Yes. The recorder supports recording up to 8MP resolution and provides HDMI output up to 4K. When paired with compatible 8MP security cameras, you can capture finer details like faces, license plates, and important evidence that may be harder to identify at lower resolutions.
Does Motion Detection 2.0 support human and vehicle detection?
Yes. Motion Detection 2.0 can distinguish people and vehicles from general motion events when used with supported cameras. In everyday use, this helps reduce unnecessary recordings and notifications caused by moving trees, rain, shadows, or small animals, making it easier to review the events that actually matter.
How much storage does this NVR support?
The recorder includes two SATA drive bays and supports up to 8TB per hard drive, allowing a maximum storage capacity of 16TB. Larger storage is especially useful for continuous recording, higher-resolution cameras, or keeping video history for longer periods before older footage is automatically overwritten.
Does this NVR support H.265+ video compression?
Yes. The recorder supports H.265+, H.265, H.264+, and H.264 video formats. H.265+ helps reduce storage usage and network bandwidth compared with older compression methods, allowing you to keep more recorded footage without increasing hard drive capacity under similar recording settings.
Can this NVR power cameras through PoE?
Yes. The built-in eight-port PoE switch supports IEEE 802.3af and 802.3at standards, allowing compatible cameras to receive both power and data over a single Ethernet cable. This eliminates the need for separate power adapters and helps create a cleaner, more reliable installation.
Can I watch live video on a 4K monitor?
Yes. The HDMI output supports up to 4K resolution, while VGA output supports up to 1080p. HDMI and VGA can also operate simultaneously, making it convenient to connect multiple displays for monitoring, system setup, or viewing recordings in security offices or retail environments.
Does this NVR support audio recording and two-way audio?
Yes. The recorder provides one RCA audio output and one RCA two-way audio interface. When used with compatible devices, audio can add valuable context during event reviews, and two-way audio can be useful for communicating with people at monitored locations when supported by the overall system.
What types of properties is this 8-channel PoE NVR best suited for?
This 8-channel PoE NVR is well suited for homes, retail stores, offices, small warehouses, restaurants, and other small to medium-sized properties. It offers enough capacity for multiple cameras while keeping installation straightforward, making it a practical option for professional surveillance systems that need centralized recording and remote monitoring.
