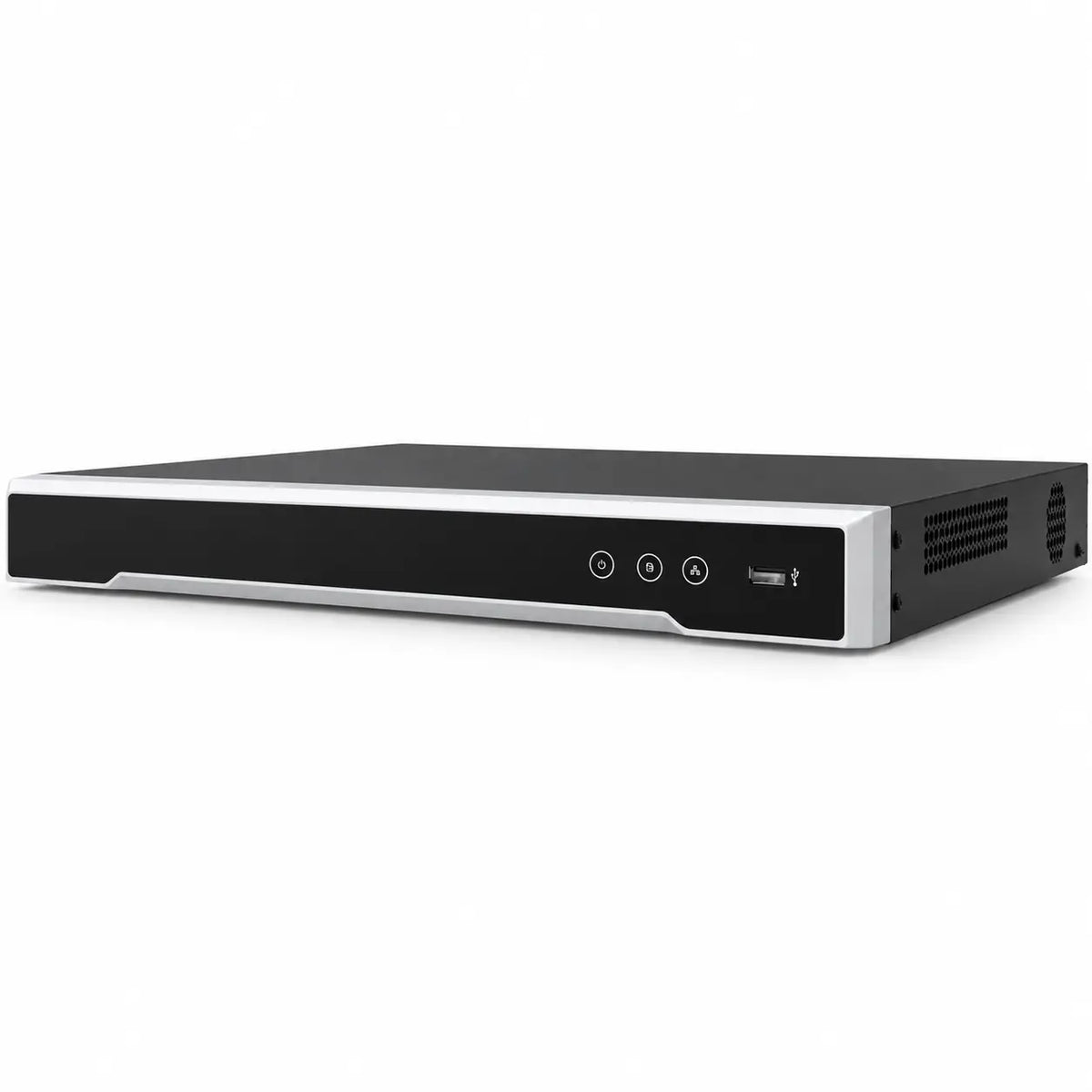

DS-7616NI-M2/16P 16-Channel 16-Port PoE NVR with 8K Output
A strong fit for higher-resolution commercial systems that need direct PoE connections, flexible storage, and centralized recording
In stock
Questions about NVR setup, storage, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The DS-7616NI-M2/16P is designed for commercial surveillance projects that need direct PoE camera connections, high-resolution recording, and centralized management for up to 16 IP cameras.
Sixteen built-in PoE ports help simplify camera power and network connections, while dual SATA storage and 8K local display support give installers more flexibility when planning higher-resolution systems and longer recording retention.
Installation and Recording Benefits
- Direct PoE Connections – Sixteen built-in PoE ports help reduce separate camera power and switching hardware.
- High-Resolution Recording – Supports compatible camera streams up to 32 MP under supported configurations.
- Flexible Storage – Two internal drive bays provide room for retention planning and future storage expansion.
- Centralized Management – Keeps live viewing, recording, playback, and camera management in one platform.
Recommended Applications
- Warehouses
- Distribution Centers
- Commercial Offices
- Schools
- Industrial Facilities
- Large Retail Properties
- Multi-Tenant Buildings
- Security Monitoring Rooms
| Video Input | |
|---|---|
| IP Camera Inputs | Up to 16 channels |
| Maximum IP Camera Resolution | Up to 32 MP |
| Incoming Bandwidth | Up to 256 Mbps |
| Outgoing Bandwidth | Up to 256 Mbps |
| Video & Recording | |
|---|---|
| Recording Resolution | 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Ultra HD Resolution Mode | Up to 8 channels of 32 MP or 24 MP IP video input |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Dual-Stream Recording | Supported |
| Smart Camera Integration | |
|---|---|
| VCA Events | Supports multiple VCA events from compatible cameras |
| Special Camera Functions | Supports compatible motion, line crossing, intrusion, heat map, ANPR/LPR, and people counting functions |
| POS Functions | POS information overlay on live view and playback, with POS-triggered recording and alarm support |
| Decoding & Playback | |
|---|---|
| Decoding Capacity | 2 × 32 MP + 2 × 8 MP, 10 × 8 MP, 20 × 4 MP, or 40 × 1080p at 30 fps |
| Synchronized Playback | Up to 16 channels |
| Video Output | |
|---|---|
| HDMI Output | 1 × HDMI |
| Maximum HDMI Resolution | Up to 8K, 7680 × 4320 at 30 Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 at 60 Hz |
| Video Output Mode | Independent HDMI and VGA outputs |
| CVBS Output | 1 × BNC |
| Storage | |
|---|---|
| Internal Storage | 2 × SATA interfaces |
| Maximum HDD Capacity | Up to 16 TB per HDD |
| PoE | |
|---|---|
| PoE Ports | 16 × RJ45 10/100 Mbps PoE ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget | Up to 200 W |
| Network | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connections | Up to 128 |
| Camera Access Protocol | ONVIF Version 2.5, RTSP |
| IP Speaker Support | Up to 8 channels |
| Audio | |
|---|---|
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA interface using the audio input |
| Alarm & USB | |
|---|---|
| Alarm Input | 4 channels |
| Alarm Output | 1 channel |
| USB Interface | Front: 1 × USB 2.0; Rear: 1 × USB 3.0 |
| Power | |
|---|---|
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤ 15 W without HDD and with PoE off |
| Physical & Environmental | |
|---|---|
| Dimensions | 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 in) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% |
Find answers to common questions about camera compatibility, channel capacity, PoE connectivity, recording, storage, remote viewing, and system installation.
What commercial projects is the DS-7616NI-M2/16P suitable for?
The DS-7616NI-M2/16P is designed for commercial surveillance systems requiring up to 16 IP cameras. It is a practical choice for warehouses, offices, schools, retail properties, industrial sites, and other projects that need direct PoE camera connections and higher-resolution recording.
Is the DS-7616NI-M2/16P suitable for warehouse surveillance?
Its 16-camera capacity can support coverage around entrances, loading areas, warehouse aisles, shipping zones, offices, and selected exterior areas. The built-in PoE ports can also simplify installation when cameras connect directly to the recorder.
Can this NVR be used in schools or commercial office buildings?
Yes. Compatible IP cameras can be deployed around entrances, corridors, offices, common areas, parking areas, and other monitored locations. The final camera and storage configuration should be planned around coverage, bandwidth, and retention requirements.
Is the DS-7616NI-M2/16P suitable for upgrading an existing NVR system?
It can be considered for compatible upgrades where higher recording resolution, 8K local display, direct PoE connectivity, or additional storage capacity is needed. Installers should verify camera compatibility, firmware, network settings, power requirements, and existing cabling.
Does the DS-7616NI-M2/16P provide PoE for all 16 camera channels?
Yes. The recorder includes 16 built-in PoE interfaces for compatible cameras. These ports share a total PoE power budget of up to 200W, so installers should verify the combined power requirements of all connected devices.
Can the DS-7616NI-M2/16P record 32MP cameras?
The recorder supports resolutions up to 32MP. When Ultra HD Resolution Mode is enabled, it supports up to eight 32MP or 24MP IP video inputs, so high-resolution system design should account for this operating condition.
Does the DS-7616NI-M2/16P support 8K monitor output?
Yes. The HDMI output supports resolutions up to 7680 × 4320 at 30 Hz. This is the local display output capability and is separate from recording resolution and simultaneous decoding capacity.
How much storage can be installed in the DS-7616NI-M2/16P?
The recorder provides two internal SATA interfaces and supports drives up to 16TB per bay. Actual recording retention depends on camera count, resolution, bitrate, frame rate, compression settings, scene activity, and recording schedule.
What smart camera functions can this recorder support?
The recorder supports compatible camera-side functions including VCA events, heat mapping, ANPR/LPR, people counting, and related smart analytics. Available functionality depends on the connected camera model and system configuration.
What are the core specifications of the DS-7616NI-M2/16P?
The recorder supports up to 16 IP camera channels, 256 Mbps incoming bandwidth, recording resolutions up to 32MP, 16 built-in PoE ports, two SATA drive bays, 16-channel synchronized playback, and HDMI output up to 8K.
