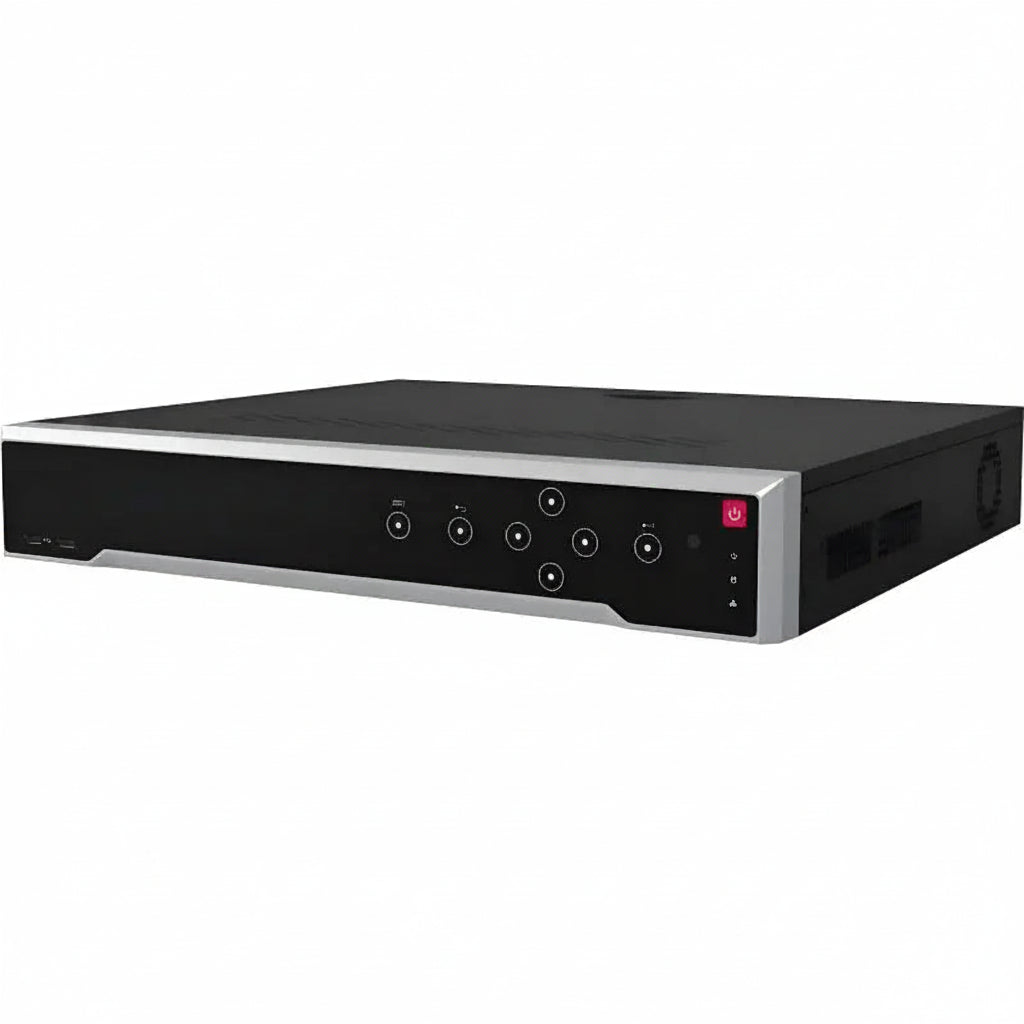

DS-7764NI-M4 64-Channel 4-Bay NVR with 8K Output

This 1.5U NVR is more compact, but it still supports up to 64 IP cameras and 400 Mbps bandwidth. In real installations, it’s usually chosen when you want high channel count without going full 2U or 3U size. It fits better in tighter rack spaces while still handling large commercial systems.

It supports up to 64 IP cameras, but high-resolution performance depends on decoding limits. For example, it can handle combinations like 2-ch 32MP or multiple 8MP/4K streams. In practice, installers mix resolutions to balance performance instead of running every camera at max resolution all the time.

Yes. HDMI 1 supports up to 8K output while HDMI 2 supports up to 4K. This is useful in control rooms where you want a main 8K display for overview and a second screen for detailed camera layouts. It helps security teams manage large camera grids more efficiently.

Yes. It supports ONVIF (Version 2.2/2.5) and RTSP, so it can integrate with many third-party IP cameras. In real-world setups, this is useful for system upgrades where not all cameras come from the same manufacturer, allowing everything to be recorded in one central system.

The 400 Mbps incoming and outgoing bandwidth means the system can handle heavy multi-camera traffic at the same time. For installers, this matters when running lots of 4K or high-bitrate cameras. It reduces lag during live view and helps prevent dropped frames during remote access.

This NVR supports 4 SATA drives plus 1 eSATA expansion, with up to 16TB per drive. That gives up to 64TB internal storage, plus expansion options depending on setup. In real use, this is enough for long-term recording in warehouses, campuses, or multi-building systems.

Yes. It supports one RCA audio output and one two-way audio channel, plus up to 8 IP speakers. In practice, this allows audio playback and communication in monitored areas, which is useful for entrances, retail stores, or parking lots where audio adds extra context to video events.

Yes. It supports up to 128 remote connections, so multiple users can view live or playback video at the same time. Installers typically use this for business clients who want management access from phones, desktops, or security centers without affecting system performance.

Yes. It supports H.265+, H.265, H.264+, and H.264 compression formats. H.265+ is commonly used to reduce storage consumption while keeping video quality stable. In real deployments, this helps extend recording time without immediately upgrading hard drives.

This NVR is mainly used in large commercial environments like warehouses, campuses, factories, logistics hubs, and multi-building properties. It’s built for high camera counts, centralized monitoring, and long recording retention where reliability and bandwidth handling are more important than simple home use.
