EKI-K82T46H 6-Camera 4MP Hybrid Light PoE Kit with 2TB HDD
Six 4MP Smart Hybrid Light turret cameras with human and vehicle detection, an 8-channel PoE NVR, 2TB local recording, and room for two additional compatible IP cameras.
In stock
Questions about camera placement, installation, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The EKI-K82T46H is a six-camera 4MP PoE security system designed for homes and smaller commercial properties that need centralized local recording. Six turret cameras are included, while the 8-channel PoE NVR leaves room for up to two additional compatible IP cameras.
Each camera combines a 2.8mm wide-angle lens, Smart Hybrid Light, human and vehicle detection, a built-in microphone, and an IP67-rated enclosure. The included 2TB HDD provides local NVR recording, with storage capacity upgradeable to a compatible drive up to 8TB.
| System Configuration | |
|---|---|
| Kit Model | EKI-K82T46H |
| System Type | PoE Network Security Camera System |
| Included Cameras | 6 × DS-2CD1343G2-LIUF |
| Included NVR | 1 × ERI-K108-P8 |
| Camera Resolution | 4MP (2560 × 1440) |
| Camera Style | Fixed Turret |
| Included Camera Channels | 6 channels |
| Maximum NVR Channels | 8 IP camera channels |
| Built-in PoE Ports | 8 |
| Remaining Channel Capacity | Up to 2 additional compatible IP cameras, subject to recorder bandwidth and system configuration |
| Included Storage | 2TB HDD |
| Camera Specifications — DS-2CD1343G2-LIUF | |
| Camera Model | DS-2CD1343G2-LIUF |
| Quantity | 6 |
| Camera Type | 4MP Fixed Turret Network Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Lens | 2.8 mm fixed focal lens, M12 mount |
| Field of View | Horizontal: 98°; vertical: 54°; diagonal: 114° |
| Aperture | F1.6 |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, AGC ON; black and white: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; tilt: 0° to 75°; rotate: 0° to 360° |
| DORI Distance | Detect: 63 m; observe: 25 m; recognize: 12 m; identify: 6 m |
| Supplemental Lighting | IR and white light with smart supplemental light control |
| Supplemental Light Range | Up to 30 m (98 ft.) |
| IR Wavelength | 850 nm |
| Wide Dynamic Range | 120 dB |
| Image Enhancement | BLC, HLC, and 3D DNR |
| Main Stream Frame Rate | 50 Hz: 20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720 60 Hz: 20 fps at 2560 × 1440; 24 fps at 1920 × 1080 or 1280 × 720 |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Human and Vehicle Detection | Motion detection supports alarm triggering by specified human and vehicle target types |
| Built-in Microphone | Yes |
| Audio Type | Mono sound with environmental noise filtering |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Onboard Storage | Built-in microSD, microSDHC, and microSDXC card slot supporting up to 512 GB |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| API Support | Open Network Video Interface Profile S, Profile T, and Profile G; ISAPI; SDK |
| Client Software | iVMS-4200 and Mobile App |
| Power | 12 VDC ± 25%, maximum 5 W; IEEE 802.3af PoE Class 3, maximum 6.5 W |
| Material | Metal and plastic |
| Dimensions | Ø110 × 89.2 mm (Ø4.3" × 3.5") |
| Weight | Approx. 340 g (0.7 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F); humidity 95% or less, non-condensing |
| Protection Rating | IP67 |
| NVR Specifications — ERI-K108-P8 (D) | |
| NVR Model | ERI-K108-P8 |
| Hardware Revision | D |
| Quantity | 1 |
| IP Video Input | 8 channels |
| Human/Vehicle Analysis | 4 channels |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 1 channel at 8MP, 3 channels at 4MP, or 6 channels at 1080p at 30 fps |
| Synchronous Playback | 8 channels |
| HDMI Output | 1 channel, up to 4096 × 2160 at 30 Hz |
| VGA Output | 1 channel, up to 1920 × 1080 at 60 Hz |
| Video Output Mode | Simultaneous HDMI and VGA output |
| Audio Output | 1-channel RCA |
| Two-Way Audio | 1-channel RCA |
| Network Interface | 1 RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Built-in PoE Ports | 8 RJ45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power Budget | Up to 75 W |
| PoE Standard | IEEE 802.3af/at |
| SATA Interfaces | 1 |
| Maximum HDD Capacity | Up to 8TB |
| USB Interfaces | 2 × USB 2.0 |
| Power Supply | 48 VDC, 1.88 A |
| Power Consumption | Maximum 10 W without HDD and with PoE off |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight | Maximum 1 kg without HDD (2.2 lb.) |
| Storage Configuration | |
| Hard Drive Included | Yes |
| Included HDD Capacity | 2TB |
| Number of Included HDDs | 1 |
| Storage Type | Local NVR recording |
| SATA Interfaces | 1 |
| Maximum Supported HDD Capacity | Up to 8TB |
| Recording Compression | H.265+/H.265/H.264+/H.264 |
| Recording Retention | Varies by camera quantity, resolution, frame rate, bitrate, compression, recording schedule, and scene activity |

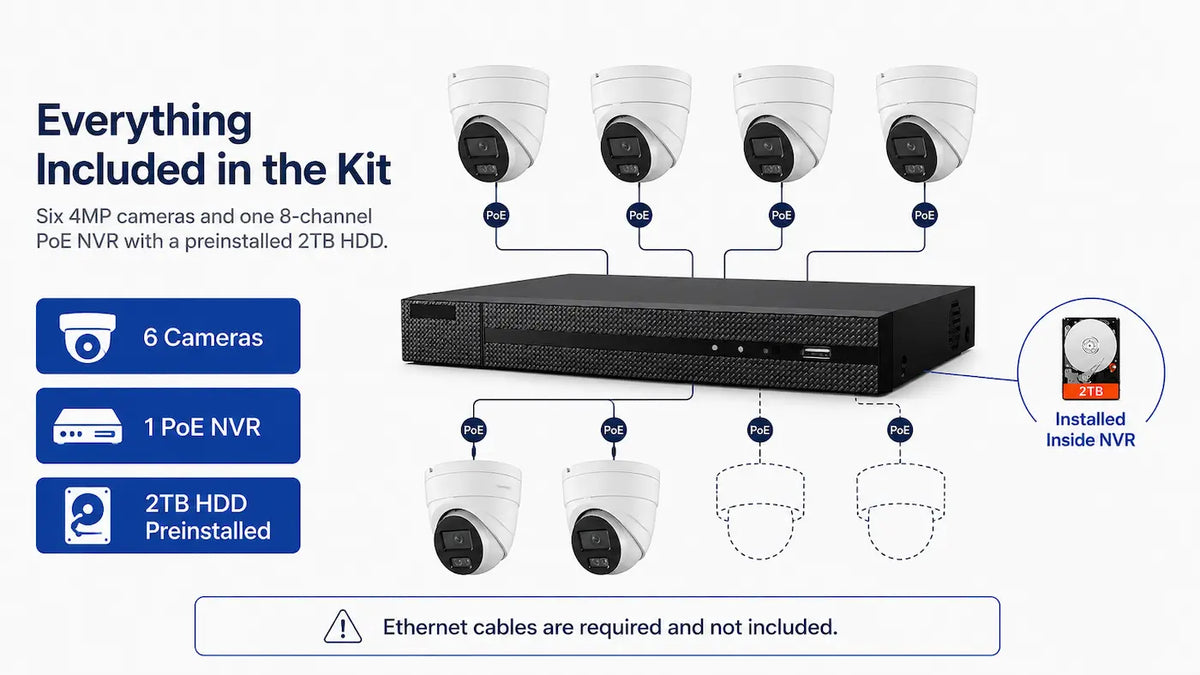

| Package Contents | |
| Network Cameras | 6 × DS-2CD1343G2-LIUF with 2.8 mm fixed lenses |
| PoE Network Video Recorder | 1 × ERI-K108-P8 |
| Hard Drive | 1 × 2TB HDD |
Find answers to common questions about included equipment, camera coverage, PoE installation, recording storage, system expansion, compatibility, and remote viewing.
How many cameras are included in the EKI-K82T46H kit?
The system includes six DS-2CD1343G2-LIUF 4MP turret network cameras with 2.8 mm fixed lenses.
Which recorder is included with the system?
The kit includes one ERI-K108-P8 8-channel network video recorder with eight built-in PoE ports.
Does the kit include a hard drive?
Yes. The package includes one 2TB hard drive for centralized local video recording.
How do the cameras connect to the recorder?
Each camera connects to one of the NVR's built-in PoE ports using compatible Ethernet cabling for power, video, and data transmission.
Can the cameras be installed outdoors?
Yes. The included cameras carry an IP67 protection rating when installed according to the product and cabling requirements.
Can additional cameras be added later?
Yes. The recorder supports up to eight IP camera channels. With six cameras included, up to two additional compatible cameras may be added within the recorder's bandwidth limits.
Can the NVR storage capacity be upgraded?
The recorder provides one SATA interface and supports one compatible hard drive with a capacity of up to 8TB.
Is this system suitable for home or small-business security?
The six-camera configuration can support entrances, driveways, offices, common areas, parking access points, and other smaller properties.
Can this system be used in retail or restaurant locations?
Yes. It can support monitoring around customer entrances, sales areas, service counters, stockrooms, dining areas, and exterior access points.
Do the cameras support human and vehicle detection?
Yes. Supported motion events can be filtered by specified human and vehicle target types to help focus event review.
