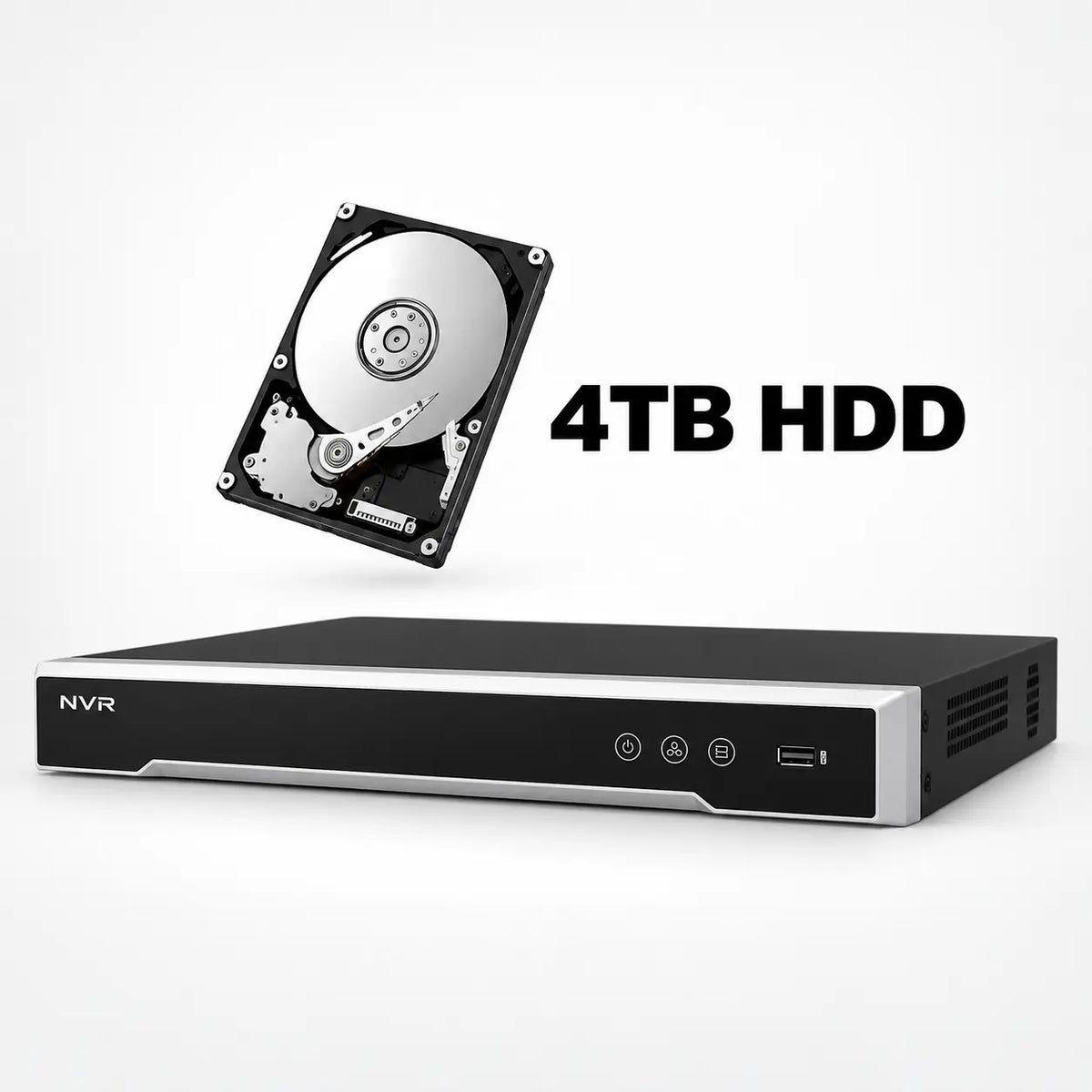

ERI-K216-P16 16-Channel PoE NVR with 4TB HDD
Includes a 4TB HDD for commercial projects that need direct PoE camera connections, centralized recording, and flexible storage expansion
In stock
Questions about NVR setup, storage, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
This ERI-K216-P16 configuration includes a 4TB hard drive, giving commercial surveillance projects both the recorder and local video storage in one purchase.
Sixteen built-in PoE ports allow compatible cameras to connect directly for power and data, while dual SATA support provides flexibility for future storage expansion.
Storage and Installation Benefits
- 4TB HDD Included – Includes a 4TB hard drive for local video storage.
- Direct PoE Connections – Sixteen built-in PoE ports help simplify camera power and network connections.
- Storage Expansion – Dual SATA interfaces provide flexibility for future storage upgrades.
- Centralized Management – Keeps live viewing, recording, and playback in one system.
Recommended Applications
- Retail Stores
- Restaurants
- Small Warehouses
- Commercial Offices
- Apartment Properties
- Medical Clinics
- Light Industrial Facilities
| Video Input | |
|---|---|
| IP Camera Inputs | Up to 16 channels |
| Incoming Bandwidth | Up to 160 Mbps |
| Outgoing Bandwidth | Up to 80 Mbps |
| Video & Recording | |
|---|---|
| Maximum Recording Resolution | Up to 8 MP |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Intelligent Analytics | |
|---|---|
| Motion Detection 2.0 | Human and vehicle classification on up to 4 channels |
| Decoding & Playback | |
|---|---|
| Decoding Capacity | 1 × 8 MP, 3 × 4 MP, or 6 × 1080p at 30 fps |
| Synchronized Playback | Up to 16 channels |
| Video Output | |
|---|---|
| HDMI Output | 1 × HDMI, up to 4K resolution |
| VGA Output | 1 × VGA, up to 1920 × 1080 at 60 Hz |
| Video Output Mode | Simultaneous HDMI and VGA output |
| Storage | |
|---|---|
| Included HDD | 1 × 4 TB HDD included |
| Internal Storage | 2 × SATA interfaces |
| Maximum HDD Capacity | Up to 8 TB per HDD |
| PoE | |
|---|---|
| PoE Ports | 16 × RJ45 10/100 Mbps PoE ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget | Up to 150 W |
| Network | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000 Mbps Ethernet interface |
| Remote Connections | Up to 32 |
| Audio | |
|---|---|
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA interface |
| USB | |
|---|---|
| USB Interface | 2 × USB 2.0 |
| Power | |
|---|---|
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤ 15 W without HDD and with PoE off |
| Physical & Environmental | |
|---|---|
| Chassis | 1U |
| Dimensions | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 in) |
| Weight | ≤ 2.6 kg (5.7 lb) without HDD |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% |
Find answers to common questions about camera compatibility, channel capacity, PoE connectivity, recording, storage, remote viewing, and system installation.
What makes this ERI-K216-P16 different from the recorder-only version?
This configuration includes a 4TB hard drive already installed for local recording. It is intended for buyers who want storage included with the recorder instead of sourcing and installing the first hard drive separately.
Is the ERI-K216-P16 with 4TB HDD suitable for retail businesses?
Yes. Its 16-camera capacity can support coverage around entrances, checkout areas, stockrooms, employee spaces, and exterior access points. The included 4TB drive provides an initial local recording setup, while actual retention depends on camera and recording settings.
Can this 4TB NVR configuration be used in offices and medical clinics?
It can be used for compatible commercial systems covering reception areas, entrances, corridors, offices, storage areas, and other selected spaces. The integrated PoE ports also help keep smaller and midsize installations more organized.
Is this configuration suitable for warehouse surveillance?
The 16-channel recorder can support cameras around loading areas, inventory aisles, shipping stations, offices, and exterior entrances. Installers should confirm camera count, bandwidth, PoE requirements, and expected retention before finalizing the system design.
How much recording time will the included 4TB HDD provide?
There is no single fixed retention period for a 4TB drive. Recording time depends on the number of cameras, resolution, frame rate, compression settings, scene activity, and whether recording is continuous, scheduled, or event based.
Does the ERI-K216-P16 support human and vehicle classification?
Motion Detection 2.0 provides human and vehicle classification on up to four channels. This can help users focus event review on supported motion involving people or vehicles instead of reviewing every motion event.
Can the recorder display video on a 4K monitor?
Yes. The recorder supports HDMI output at resolutions up to 4K and also provides VGA output. Display capability is separate from camera recording resolution and depends on the selected output and viewing configuration.
Does this NVR require a separate PoE switch?
The recorder includes 16 built-in PoE ports with a combined power budget of up to 150 W, so many direct-connect installations will not require a separate PoE switch. Installers should still verify each connected camera's power requirements.
Can I add more storage after using the included 4TB HDD?
Yes. The recorder provides two internal SATA interfaces and supports hard drives up to 8TB per bay. With one 4TB drive included in this configuration, the storage layout can be expanded according to supported drive capacity and project requirements.
What are the main specifications of the ERI-K216-P16 4TB configuration?
The recorder supports up to 16 IP cameras, includes 16 built-in PoE ports, provides up to 160 Mbps incoming bandwidth, records resolutions up to 8MP, and has two SATA bays. This configuration includes one preinstalled 4TB hard drive.
