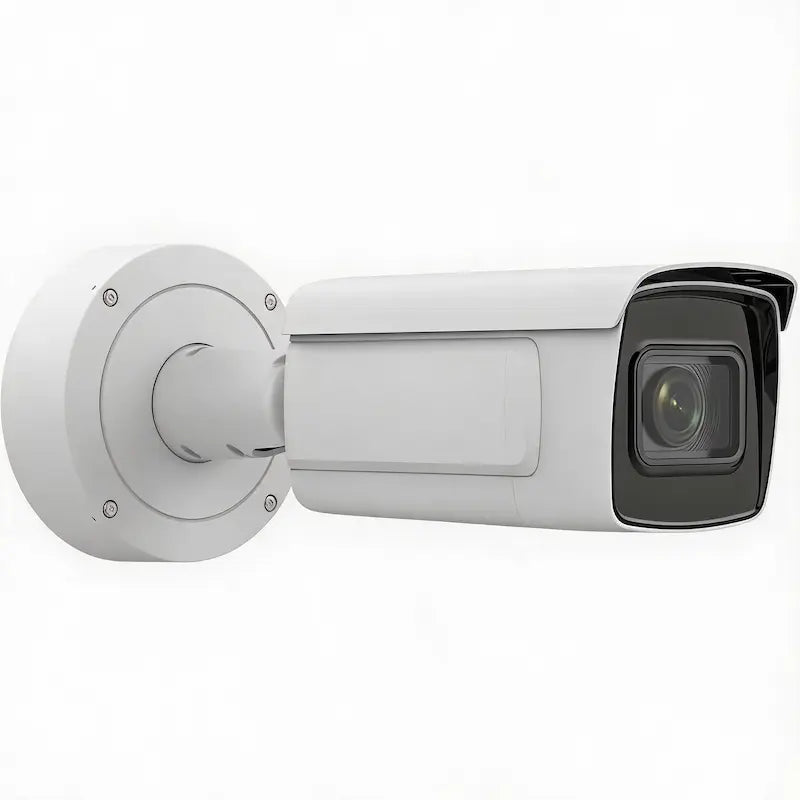

The iDS-2CD7A46G0/P-IZHS is a 4MP LPR bullet camera designed for vehicle identification, access control, and parking management applications that require accurate license plate capture and reliable outdoor monitoring.
Equipped with an 8-32 mm motorized varifocal lens, the camera provides flexible viewing adjustment for vehicle lanes, gates, checkpoints, and areas where longer-distance monitoring is required.
Advanced license plate recognition and vehicle attribute detection help security teams capture important vehicle information, including plate details, vehicle type, color, and other supported attributes. These features improve visibility for controlled entrances, parking facilities, and transportation-related applications.
Designed for outdoor commercial deployment, the camera provides reliable image performance in challenging environments such as bright headlights, changing weather, and uneven lighting. Its rugged housing supports installation at vehicle access points, logistics facilities, industrial sites, and managed parking areas.
Key Benefits
-
4MP LPR Vehicle Recognition – Supports license plate capture for controlled vehicle monitoring.
-
8-32 mm Motorized Varifocal Lens – Provides flexible viewing adjustment for different installation distances.
-
Vehicle Attribute Detection – Helps identify supported vehicle characteristics for improved awareness.
-
Parking and Access Management – Supports vehicle entry monitoring and parking-related applications.
-
Long-Range Outdoor Monitoring – Designed for vehicle lanes, gates, and checkpoint installations.
-
Durable Commercial Housing – Supports reliable operation in outdoor environments.
Recommended Applications
- Vehicle Entry Gates
- Parking Lot Entrances
- Commercial Parking Facilities
- Business Park Access Roads
- Warehouse Vehicle Lanes
- Logistics Center Checkpoints
- Apartment Community Gates
- School Campus Vehicle Entrances
- Industrial Facility Access Points
- Parking Management Areas
| Camera |
|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color:0.0005 Lux @ (F1.2, AGC ON)
B/W:0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter
Blue glass module to reduce ghost phenomenon |
| Lens |
|---|
| Focal Length & FOV | 8 to 32 mm:Horizontal FOV 42.5° to 15.1°, Vertical FOV 23.3° to 8.64°, Diagonal FOV 49.6° to 17.3° |
| Focus | Auto, Semi-auto, Manual |
| Iris Type | P-iris |
| Aperture | 8 to 32 mm:F1.7 to F1.73 |
| DORI |
|---|
| DORI | Wide, 8 to 32 mm:D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele, 8 to 32 mm:D: 400 m, O: 158.7 m, R: 80 m, I: 40 m |
| Illuminator |
|---|
| Supplement Light Type | IR |
| Supplement Light Range | 8 to 32 mm:100 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video |
|---|
| Main Stream | 50 Hz:25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:25 fps (704 × 576, 640 × 480)
60 Hz:30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz:25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz:30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz:25 fps (704 × 576, 640 × 480)
60 Hz:30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz:25 fps (704 × 576, 640 × 480)
60 Hz:30 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream:H.265+/H.265/H.264+/H.264
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264
Fourth stream:H.265/H.264/MJPEG
Fifth stream:H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Audio |
|---|
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hik memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Mobile App, VMS Platform |
| Web Browser | Plug-in required live view:IE 10, IE 11
Plug-in free live view:Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service:Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
|---|
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit BMP format |
| Image Stabilization | EIS |
| Privacy Mask | 8 programmable polygon privacy masks |
| Interface |
|---|
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (only for debugging) |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Audio | With -Y:1 input (line in), 1 output (line out), 3.5 mm connector |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | With -Y:1 RS-485 (half duplex, Hik, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Power Output | With -Y:12 VDC, max. 100 mA |
| Wiegand | -Y:1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit) |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection |
| Smart Event | Scene change detection, audio exception detection, defocus detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
| Deep Learning Function |
|---|
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering |
| Road Traffic and Vehicle Detection | Smart Function:Supports license plate recognition of vehicles and motorcycles (only in checkpoint scenario); supports vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.; supports vehicle and non-vehicle counting; blocklist and allowlist up to 10,000 records
LPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (under recommended installation and lighting conditions):License plate recognition rate ≥98%; capture rate ≥99%; driving direction accuracy rate ≥98%
Vehicle Capture Speed:Front installation in checkpoint scenario up to 120 km/h; side installation up to 80 km/h
Capture Mode:License plate and vehicle mode, vehicle priority mode |
| Metadata | Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic |
| Parking Management | Support distant view mode and close view mode
Distant view mode:Support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm
Close view mode:Support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm |
| General |
|---|
| Power | DC:12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE:IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0.295 A, max. 16.8 W |
| Material | Aluminum alloy body |
| Dimension | Without -Y:Ø144 mm × 347 mm (Ø5.7″ × 13.7″)
With -Y:Ø140 mm × 351 mm (Ø5.5″ × 13.8″) |
| Package Dimension | 405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″) |
| Weight | Approx. 1950 g (4.2 lb.) |
| With Package Weight | Approx. 3070 g (6.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter |
| Heater | Yes |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| Approval |
|---|
| EMC | FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013; IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | -Y:NEMA 4X (NEMA 250-2018) |
| Automotive and Railway | EN50121-4 |
| Other | PVC free |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the iDS-2CD7A46G0/P-IZHS commonly installed?
The iDS-2CD7A46G0/P-IZHS is commonly installed at vehicle gates, parking lot entrances, logistics checkpoints, business park access roads, apartment community gates, warehouse vehicle lanes, and commercial parking facilities.
Is this camera suitable for license plate recognition?
Yes. This model is designed for license plate recognition applications and supports vehicle and motorcycle plate recognition in supported checkpoint scenarios.
Can this camera be used for parking management?
Yes. The camera supports parking management features including parking space status detection, parking duration detection, vacant parking space alarm, and close-view license plate recognition in supported modes.
What commercial environments benefit most from this LPR camera?
Commercial parking operators, logistics centers, warehouses, apartment communities, schools, business parks, industrial facilities, and gated properties can benefit from vehicle access monitoring and license plate recognition.
What vehicle data can this camera detect?
The camera supports vehicle attribute detection, including vehicle type, color, brand, driving direction, vehicle and non-vehicle counting, and license plate recognition.
Does the iDS-2CD7A46G0/P-IZHS support allowlist and blocklist management?
Yes. The camera supports allowlist and blocklist management with up to 10,000 records, making it useful for controlled vehicle access applications.
Does this model support local recording?
Yes. The built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 1 TB for local edge recording.
Is this camera compatible with ONVIF video management systems?
Yes. It supports ONVIF Profile S, Profile G, Profile T, and Profile M, allowing integration with compatible professional video management systems.
Is the camera suitable for outdoor vehicle lanes?
Yes. The IP67 weather-resistant and IK10-rated housing supports outdoor deployment in vehicle lanes, parking entrances, access roads, and commercial gate areas.
What is the maximum video resolution of the iDS-2CD7A46G0/P-IZHS?
The camera supports a maximum resolution of 2688 × 1520, delivering 4MP video for vehicle monitoring, license plate recognition, and commercial traffic surveillance.
