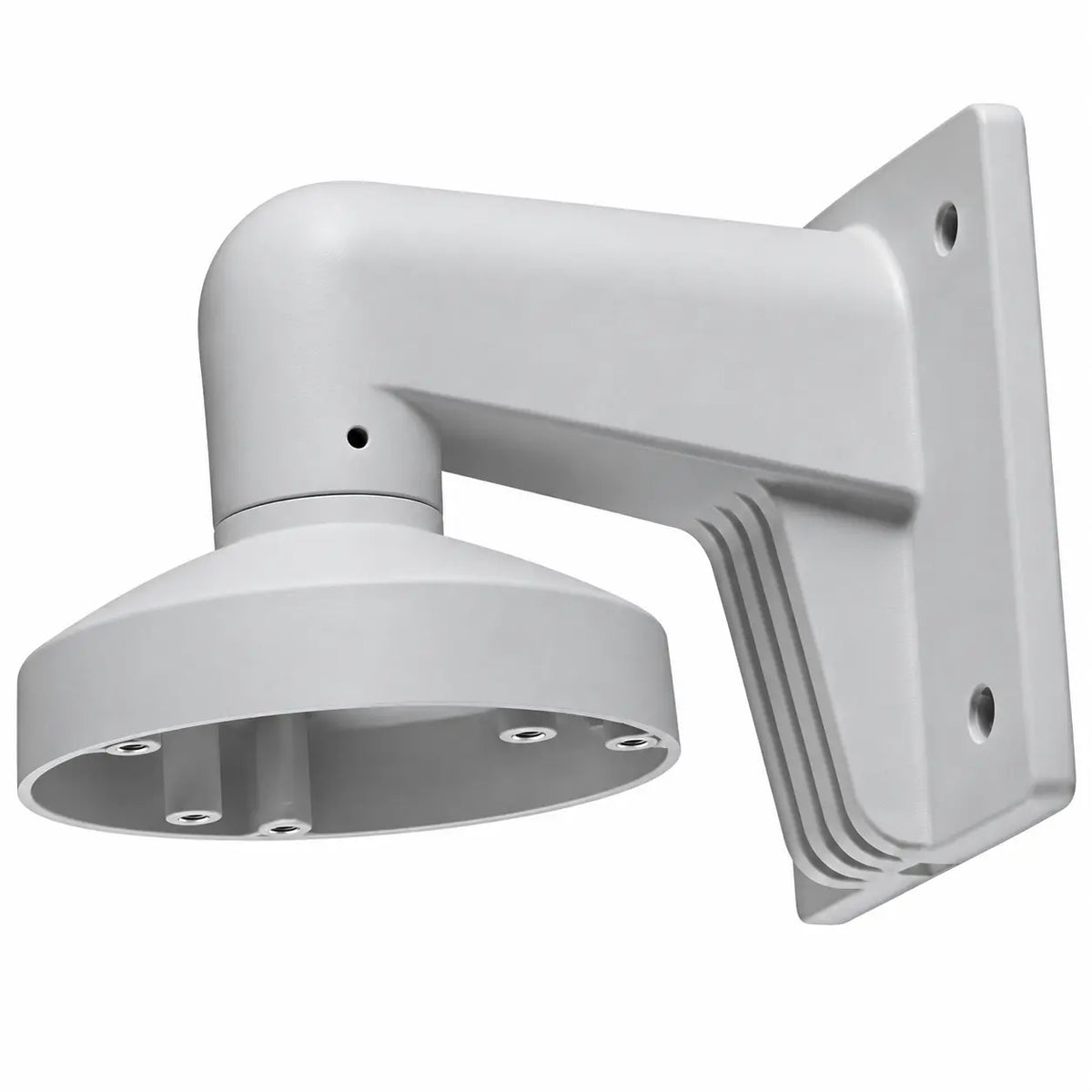

PC110 DS-1272ZJ-110 Wall Mount Bracket for Fixed Dome Cameras
Aluminum wall mount bracket with cable routing for compatible fixed-lens dome cameras, suitable for indoor or properly sealed outdoor installations
In stock
Questions about compatibility, installation, or choosing the right accessory? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The PC110 / DS-1272ZJ-110 wall mount bracket provides a dedicated mounting solution for compatible fixed-lens dome cameras. Its aluminum construction positions the camera away from the wall while providing a cleaner path for camera cabling.
The bracket supports indoor installations and outdoor wall mounting when the required waterproof rubber mat is properly used. Compatibility depends on the exact camera model, so confirm the supported model list before ordering.
Key Benefits
- Dedicated Dome Camera Mounting – Provides a purpose-built wall mounting position for compatible fixed-lens dome cameras.
- Aluminum Alloy Construction – Provides a rigid mounting platform for supported camera installations.
- Cleaner Cable Routing – Helps route camera wiring through the mounting structure for a more organized installation.
- Indoor or Outdoor Installation – Supports wall mounting in indoor locations and properly sealed outdoor applications.
Recommended Applications
- Fixed-Lens Dome Camera Installations
- Retail Store Surveillance
- Office Building Cameras
- Warehouse Camera Systems
- School and Campus Surveillance
- Commercial Building Exteriors
| Product Information | |
|---|---|
| Model | PC110 / DS-1272ZJ-110 |
| Additional Reference | WMS / WML / LTB342-110 |
| Product Type | Wall Mount Bracket for Dome Camera |
| Physical Specifications | |
|---|---|
| Material | Die-cast aluminum alloy with surface spray treatment |
| Color | White |
| Dimensions | 120 × 122 × 169 mm |
| Cable Routing | Cable entrance design |
| Installation | |
|---|---|
| Mounting | Wall mount |
| Indoor Installation | Supported |
| Outdoor Installation | Suitable when installed with the required waterproof rubber mat |
| Compatibility | |
|---|---|
| Confirmed Compatible Models | DS-2CD1123G0-I DS-2CD1143G0-I DS-2CD1143G2-I DS-2CD2122FWD-I DS-2CD2123G0-I DS-2CD2123G2-I DS-2CD2143G0-I DS-2CD2143G2-I DS-2CD2143G2-IS DS-2CD2142FWD-I DS-2CD2155FWD-I DS-2CD2183G0-I DS-2CD2183G2-I DS-2CD2183G2-IS DS-2CD2185FWD-I |
| Not Compatible With | DS-2CD2143G0-IU DS-2CD2143G2-IU DS-2CD2147G2-LSU DS-2CD2183G0-IU DS-2CD2183G2-IU PCI-D15F2S PCI-D15F4S PCI-D15F6S ECI-D14F2 |
Find answers to common questions about compatibility, installation, supported equipment, product selection, and use with security camera and surveillance systems.
What cameras are compatible with the PC110 DS-1272ZJ-110 bracket?
The current listing confirms compatibility with select fixed-lens dome cameras including DS-2CD2143G0-I, DS-2CD2143G2-I, DS-2CD2183G0-I, DS-2CD2183G2-I, and other specifically listed models. Confirm the exact camera model before ordering.
Can the DS-1272ZJ-110 be installed outdoors?
Yes. The current listing supports indoor and outdoor wall mounting when the required waterproof rubber mat is properly installed.
What material is the PC110 DS-1272ZJ-110 made from?
The bracket is made from die-cast aluminum alloy with a surface spray treatment.
What are the dimensions of the DS-1272ZJ-110 bracket?
The bracket measures approximately 120 × 122 × 169 mm.
Will this bracket fit camera models ending in -IU?
Not all -IU models are compatible. The current listing specifically identifies DS-2CD2143G0-IU, DS-2CD2143G2-IU, DS-2CD2183G0-IU, and DS-2CD2183G2-IU as incompatible.
