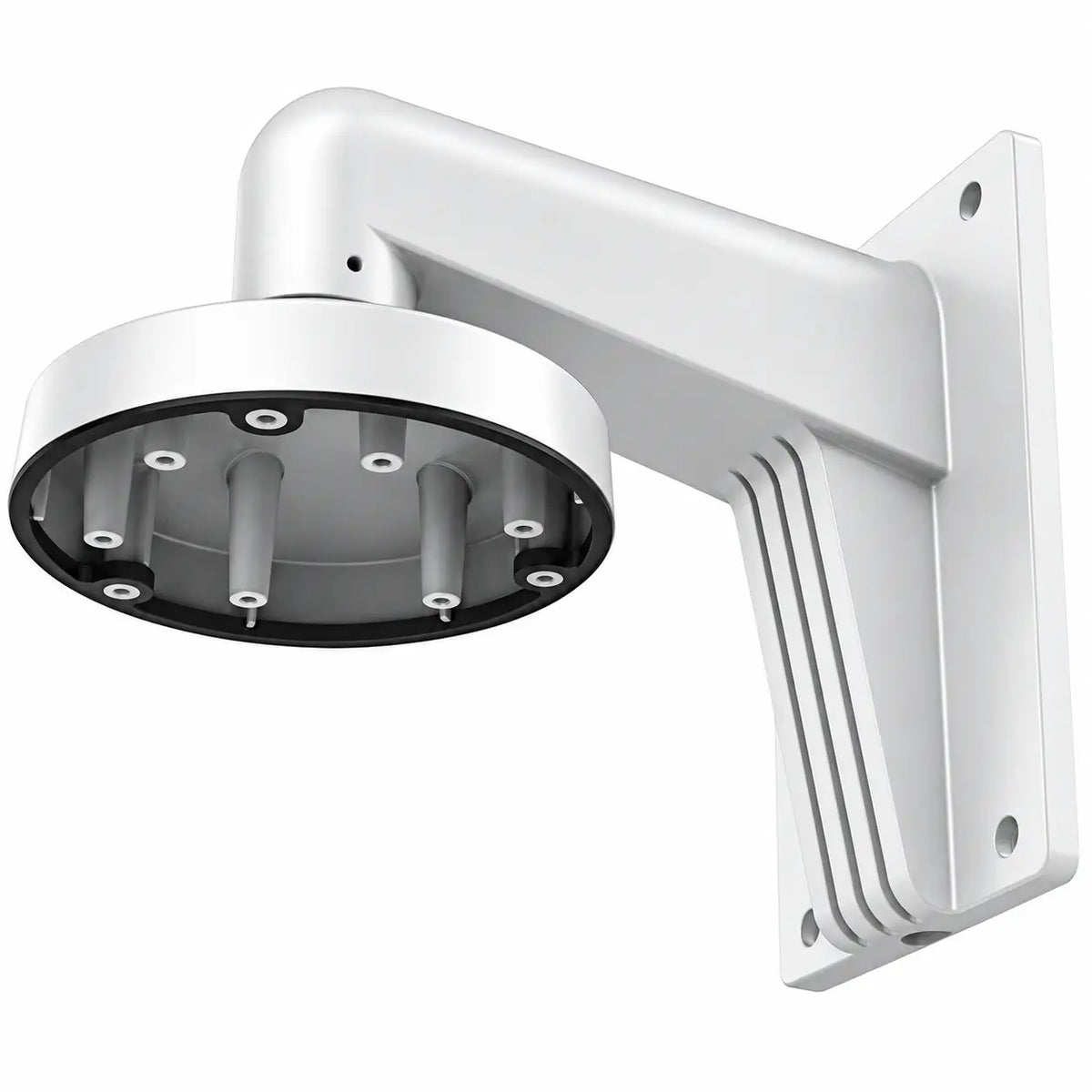

PC140 DS-1273ZJ-140 Wall Mount Bracket for Turret Cameras
Aluminum wall mount bracket with concealed cable routing for compatible fixed-lens turret cameras in indoor or properly sealed outdoor installations.
In stock
Questions about compatibility, installation, or choosing the right accessory? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The PC140 / DS-1273ZJ-140 wall mount bracket provides a dedicated mounting solution for compatible fixed-lens turret cameras. Its extended arm moves the camera away from the wall while providing internal space for cleaner cable routing and connections.
The die-cast aluminum alloy construction supports indoor installations and properly sealed outdoor applications. Compatibility depends on the exact camera model, so confirm the supported model before ordering.
Key Benefits
- Dedicated Turret Camera Mounting – Provides a purpose-built wall mounting position for compatible fixed-lens turret cameras.
- Cleaner Cable Management – Helps conceal camera connections and route cabling through the mounting structure.
- Aluminum Alloy Construction – Provides a rigid mounting platform for supported camera installations.
- Indoor or Outdoor Installation – Supports wall mounting indoors or outdoors when the required waterproof sealing is properly installed.
Recommended Applications
- Turret Camera Wall Mounting
- Commercial Building Surveillance
- Retail Store Camera Systems
- Warehouse Camera Installations
- Office Building Surveillance
- Outdoor Perimeter Cameras
| Product Information | |
|---|---|
| Model / Reference | PC140 / WMS / WML / DS-1273ZJ-140 / LTB342-140 |
| Product Type | Wall Mount Bracket |
| Application | Wall mounting for compatible fixed-lens turret cameras |
| Physical Specifications | |
|---|---|
| Material | Die-cast aluminum alloy with surface spray treatment |
| Dimensions | Φ140 × 182 × 120 mm (5.5 × 7.2 × 4.7 in) |
| Weight | 703 g (1.55 lb.) |
| Cable Management | Internal space for camera connection cables |
| Installation | |
|---|---|
| Mounting | Wall mount |
| Environment | Indoor / outdoor |
| Outdoor Installation | Waterproof rubber mats required for outdoor mounting |
| Compatibility | |
|---|---|
| Confirmed Compatible Models | DS-2CD2347G1-I(L) DS-2CD2347G2-I(L) DS-2CD2327G1-I(L) DS-2CD2365G1-I DS-2CD2385G1-I |
| Package Information | |
|---|---|
| EAN | 0722390681507 |
| Package Dimensions | 9.5 × 7.4 × 5.9 in |
Find answers to common questions about compatibility, installation, supported equipment, product selection, and use with security camera and surveillance systems.
What is the PC140 DS-1273ZJ-140 used for?
It is a wall mount bracket designed to provide a dedicated mounting position for compatible fixed-lens turret security cameras.
Which cameras are confirmed compatible with the PC140 bracket?
The current supplier listing confirms DS-2CD2347G1-I(L), DS-2CD2347G2-I(L), DS-2CD2327G1-I(L), DS-2CD2365G1-I, and DS-2CD2385G1-I. Confirm the exact camera model before ordering.
Can the PC140 wall mount bracket be installed outdoors?
Yes. The supplier lists it for indoor and outdoor wall mounting when the required waterproof rubber mats are properly installed.
What material is the PC140 bracket made from?
The current product listing specifies die-cast aluminum alloy with a surface spray treatment.
Does the bracket help conceal camera cables?
Yes. The bracket provides internal space for camera connection cables, helping create a cleaner wall-mounted installation.
