PSW8-2G 8-Port Gigabit PoE+ Switch, 120W, Dual Gigabit Uplinks
PSW8-2G 8-Port Gigabit PoE+ Switch, 120W, Dual Gigabit Uplinks
$53.99

PSW8-2G 8-Port Gigabit PoE+ Switch, 120W, Dual Gigabit Uplinks

Full Gigabit PoE+ switch with eight powered ports, two dedicated Gigabit uplinks, a 120W budget, built-in power supply, and Extend Mode.
In stock
$53.99
FREE Standard Shipping on Orders $70+ within the contiguous U.S.

Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]

Installer or Dealer? Request Trade Pricing.

✓ 8 Gigabit PoE+ device ports
✓ 2 dedicated Gigabit uplinks
✓ 120W total PoE power budget
✓ Up to 30W per PoE port
✓ Extend Mode up to 150 m
✓ Fanless plug-and-play operation

Chicago-Area Warehouse
Same-Day Processing Available
1-Year Warranty
30-Day Return Window

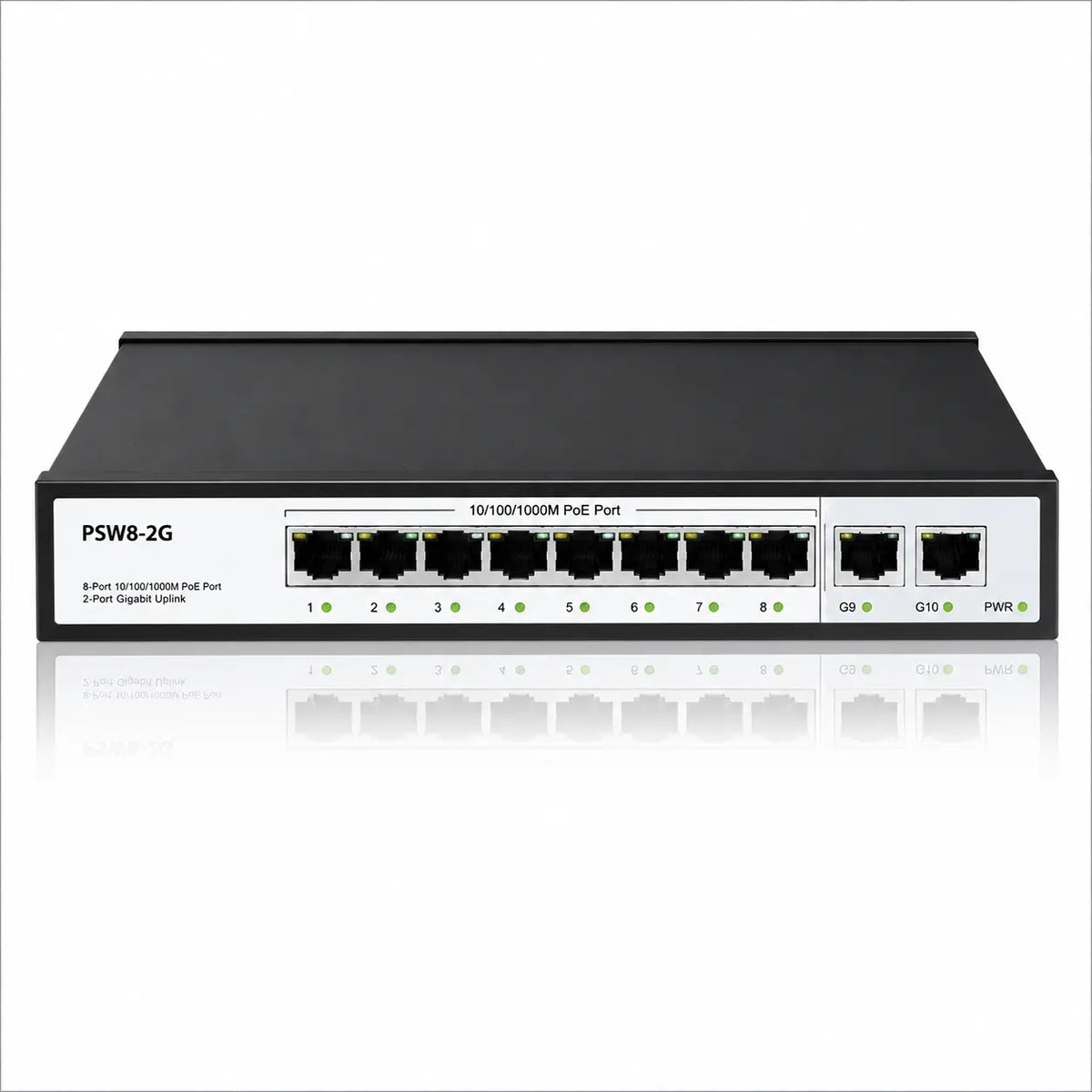

The PSW8-2G is a full Gigabit PoE+ network switch designed to provide centralized power and data connectivity for compatible IP cameras, VoIP phones, wireless access points, and other standards-based PoE devices.

Eight 10/100/1000 Mbps PoE ports connect powered devices, while two dedicated 10/100/1000 Mbps Gigabit uplink ports provide connections to compatible NVRs, routers, or additional network switches.

The switch supports IEEE 802.3af and IEEE 802.3at PoE, with up to 30W available per PoE port and a 120W total power budget. Automatic powered-device detection supplies power to compatible PoE equipment while standard non-PoE network devices are not supplied with PoE power.

Extend Mode increases the supported PoE transmission distance from 100 meters to as much as 150 meters with reduced network speed. A built-in power supply, fanless metal housing, LED status indicators, and plug-and-play operation support straightforward commercial network installations.

Key Benefits

  • Eight Gigabit PoE+ Ports – Provides 10/100/1000 Mbps connectivity and PoE power for up to eight compatible network devices.
  • Dual Gigabit Uplinks – Keeps two dedicated Gigabit ports available for compatible recorders, routers, or other network infrastructure.
  • 120W PoE Power Budget – Distributes shared PoE power across connected devices, with up to 30W available from an individual port.
  • Automatic PoE Detection – Detects compatible powered devices and supplies standards-based PoE power where required.
  • Extended Transmission – Extend Mode increases supported Ethernet and PoE distance up to 150 meters with reduced data speed.
  • Quiet Plug-and-Play Design – Fanless operation, a built-in power supply, and no required software configuration simplify deployment.

Recommended Applications

  • IP Camera Networks
  • Small NVR Surveillance Systems
  • Retail Store Camera Installations
  • Office Security Networks
  • Warehouse Surveillance Systems
  • VoIP Phone Networks
  • Wireless Access Point Installations
  • Apartment Common-Area Cameras
  • Restaurant Surveillance Systems
  • Small Commercial Network Closets
Network Interface
PoE Ports 8 × 10/100/1000 Mbps Gigabit PoE ports
Uplink Ports 2 × 10/100/1000 Mbps Gigabit Ethernet uplink ports
PoE
PoE Standards IEEE 802.3af, IEEE 802.3at
Maximum Power per Port Up to 30 W
Total PoE Power Budget 120 W
Powered Device Detection Automatic detection and power delivery for compatible PoE powered devices
Passive PoE Compatibility Does not support passive 24 V PoE devices
Switching Performance
Backplane Bandwidth 1.6 Gbps (as stated in the provided specifications)
MAC Address Table 1K
Transmission
Standard Transmission Distance Up to 100 m
Extend Mode Up to 150 m maximum; transmission speed is reduced when Extend Mode is enabled
Power
Power Input 100–240 VAC, 50/60 Hz
Power Output 52 VDC
Power Supply Built-in internal power supply
General
Model PSW8-2G
Product Type 8-Port Full Gigabit PoE+ Switch
Configuration Plug and play; no software or configuration required
Housing Metal enclosure
Cooling Fanless design
LED Indicators Data transfer activity and PoE power status
Rack Mount Not supported
Wall Mount Supported; wall-mount accessories are not included
Package Dimensions 12.0 × 7.6 × 2.4 in
Package Contents
PoE Switch 1
Power Cord 1 × dedicated power cord
Quick Operation Manual 1

Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.

How many PoE devices can the PSW8-2G connect?

The PSW8-2G provides eight Gigabit PoE ports and can connect up to eight compatible powered devices. Their combined power requirement must remain within the 120W total PoE budget.

How much power can each PoE port provide?

Each PoE port supports up to 30W for compatible IEEE 802.3af or IEEE 802.3at powered devices. Available power also depends on the combined load across all eight PoE ports.

What are the two Gigabit uplink ports used for?

The two dedicated 10/100/1000 Mbps uplink ports can connect the switch to a compatible NVR, router, or additional network switch without using the eight PoE device ports.

How far can the PSW8-2G extend a PoE connection?

Standard transmission supports up to 100 meters. Extend Mode can increase the maximum distance to 150 meters, although network speed is reduced while the extended mode is operating.

Does the PSW8-2G support passive 24V PoE devices?

No. The PSW8-2G is designed for compatible IEEE 802.3af and IEEE 802.3at powered devices and does not support passive 24V PoE equipment.
