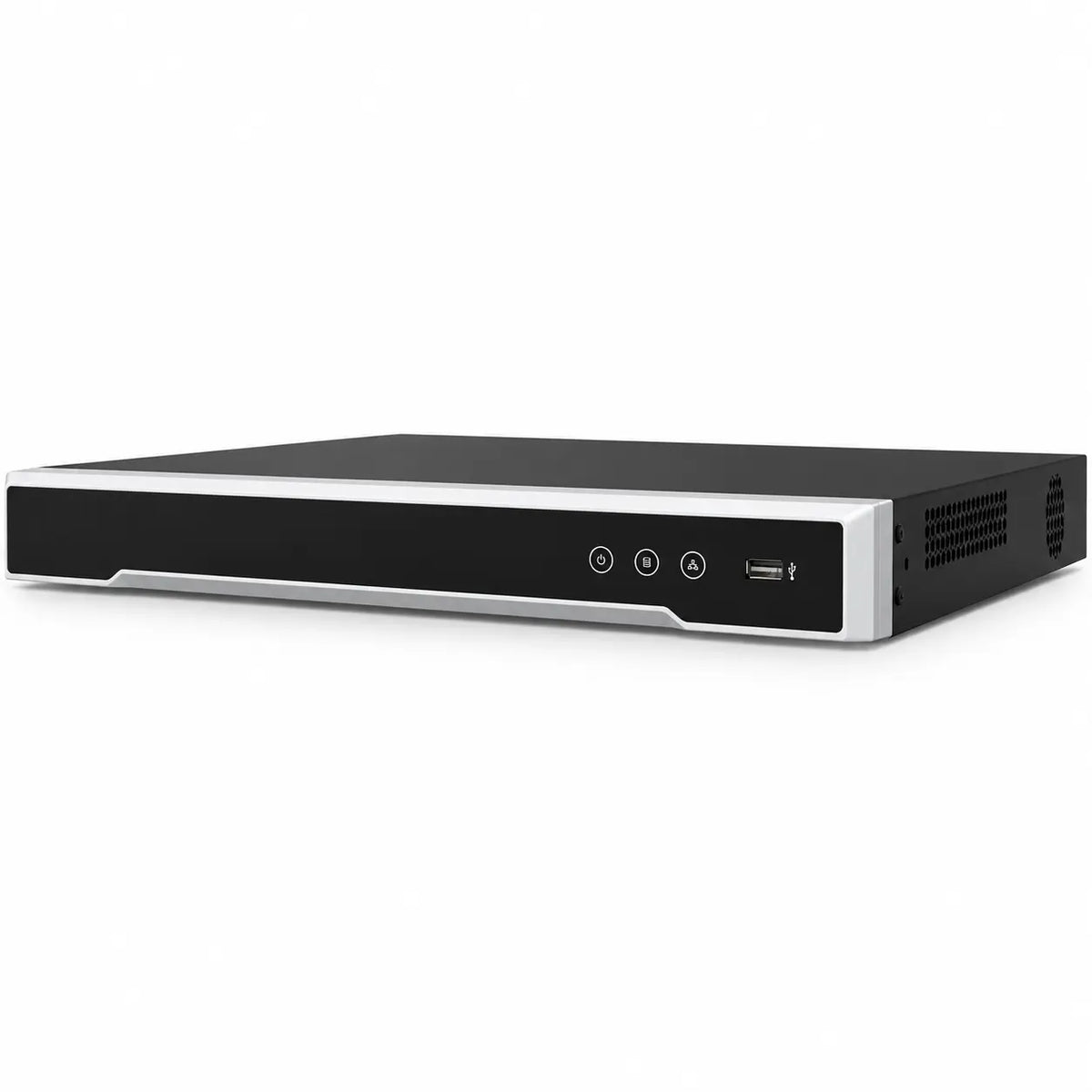

DS-7616NI-Q2/16P 16-Channel PoE NVR with Dual-Bay Storage
Built for 16-camera commercial layouts that benefit from direct PoE wiring, centralized recording, and room for a second drive
In stock
Questions about NVR setup, storage, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
When a 16-camera commercial project has most camera runs terminating at the recorder, the DS-7616NI-Q2/16P helps keep power, networking, and recording organized in one system.
Sixteen built-in PoE ports allow compatible cameras to connect directly, while two internal drive bays provide more flexibility when planning video retention and future storage needs.
Installation and Recording Benefits
- Direct PoE Connections – Sixteen built-in PoE ports simplify power and network connections for compatible cameras.
- Focused Motion Review – Human and vehicle analysis helps narrow down relevant motion events on supported channels.
- Flexible Storage – Dual SATA bays provide additional options when planning recording retention.
- Centralized Management – Keeps live viewing, recording, and playback in one platform.
Recommended Applications
- Retail Properties
- Commercial Offices
- Restaurants
- Warehouses
- Schools
- Medical Offices
- Multi-Tenant Commercial Properties
| Video Input | |
|---|---|
| IP Camera Inputs | Up to 16 channels |
| Incoming Bandwidth | Up to 160 Mbps |
| Outgoing Bandwidth | Up to 80 Mbps |
| Video & Recording | |
|---|---|
| Maximum Recording Resolution | Up to 8 MP |
| Recording Resolution | 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Intelligent Analytics | |
|---|---|
| Motion Detection 2.0 | Human and vehicle analysis on up to 4 channels |
| VCA Events | Supports compatible camera-side VCA events |
| Smart Search & Playback | Supported |
| Decoding & Playback | |
|---|---|
| Decoding Capacity | 1 × 8 MP or 5 × 1080p at 30 fps |
| Synchronized Playback | Up to 16 channels |
| Video Output | |
|---|---|
| HDMI Output | 1 × HDMI |
| Maximum HDMI Resolution | Up to 4K, 4096 × 2160 at 30 Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 at 60 Hz |
| Video Output Mode | Simultaneous HDMI and VGA output |
| Storage | |
|---|---|
| Internal Storage | 2 × SATA interfaces |
| Maximum HDD Capacity | Up to 8 TB per HDD |
| PoE | |
|---|---|
| PoE Ports | 16 × RJ45 10/100 Mbps PoE ports |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget | Up to 150 W |
| Network | |
|---|---|
| Network Interface | 1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connections | Up to 64 |
| Audio | |
|---|---|
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA interface using the audio input |
| USB | |
|---|---|
| USB Interface | Front: 1 × USB 2.0; Rear: 1 × USB 2.0 |
| Power | |
|---|---|
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤ 15 W without HDD and with PoE off |
| Physical & Environmental | |
|---|---|
| Chassis | 1U |
| Dimensions | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 in) |
| Weight | ≤ 2.6 kg (5.7 lb) without HDD |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% |
Find answers to common questions about camera compatibility, channel capacity, PoE connectivity, recording, storage, remote viewing, and system installation.
What commercial projects is the DS-7616NI-Q2/16P suitable for?
The DS-7616NI-Q2/16P is suited to commercial systems requiring up to 16 IP cameras. Typical applications include retail properties, offices, restaurants, warehouses, schools, medical offices, and multi-tenant sites where camera wiring can terminate near the recorder.
Is the DS-7616NI-Q2/16P suitable for warehouse surveillance?
Its 16-camera capacity can support entrances, loading areas, warehouse aisles, shipping zones, offices, and selected exterior locations. Direct PoE connections can also simplify installations where camera cables are routed back to a central equipment location.
Can this NVR be used in retail stores and commercial offices?
Yes. The recorder can centralize compatible cameras covering entrances, checkout or reception areas, stockrooms, corridors, offices, and exterior access points. The final camera layout should be based on site coverage and recording retention requirements.
Can the DS-7616NI-Q2/16P replace an existing 16-channel recorder?
It can be considered for compatible replacement or expansion projects where built-in PoE, dual-drive storage, or 4K local display is required. Installers should verify camera compatibility, firmware, network settings, storage requirements, and PoE power before replacement.
Does the DS-7616NI-Q2/16P support human and vehicle analysis?
Motion Detection 2.0 provides human and vehicle analysis on up to four channels on the applicable base configuration. This can help operators narrow down relevant motion events during routine playback and event review.
Does this recorder support 4K monitor output?
Yes. The HDMI output supports resolutions up to 4096 × 2160 at 30 Hz. This is the local display capability and should not be confused with the recorder's maximum 8MP recording resolution.
Can the DS-7616NI-Q2/16P record 8MP cameras?
The recorder supports recording resolutions up to 8MP under supported configurations. Camera bitrate and frame rate should also be planned around the recorder's 160 Mbps incoming bandwidth.
How much storage can be installed in the DS-7616NI-Q2/16P?
The base model provides two SATA interfaces and supports drives up to 8TB per bay. Actual retention depends on camera count, resolution, bitrate, frame rate, compression, recording schedule, and scene activity.
What should installers consider when using all 16 PoE ports?
The sixteen built-in PoE interfaces share a total power budget of up to 150W. Installers should calculate the power requirement of each connected camera and keep the combined load within the supported PoE budget.
What are the main specifications of the DS-7616NI-Q2/16P?
The recorder supports up to 16 IP cameras, includes 16 built-in PoE ports, provides up to 160 Mbps incoming bandwidth, records resolutions up to 8MP, includes two SATA bays, and supports up to 16-channel synchronized playback.
