The IK-4244TH-MH/P is a four-camera 4MP PoE security system designed for homes, offices, retail stores, restaurants, apartment common areas, and other smaller properties that require centralized local video recording.
Each IPC-T240H turret camera features a 2.8 mm fixed lens with a wide 98° horizontal field of view, Smart IR illumination up to 98 feet, 120 dB WDR, and IP67 weather protection. The 4-channel NVR provides four built-in PoE ports, 4K HDMI output, H.265+ compression, one-channel human and vehicle analysis, and an included 2TB hard drive.

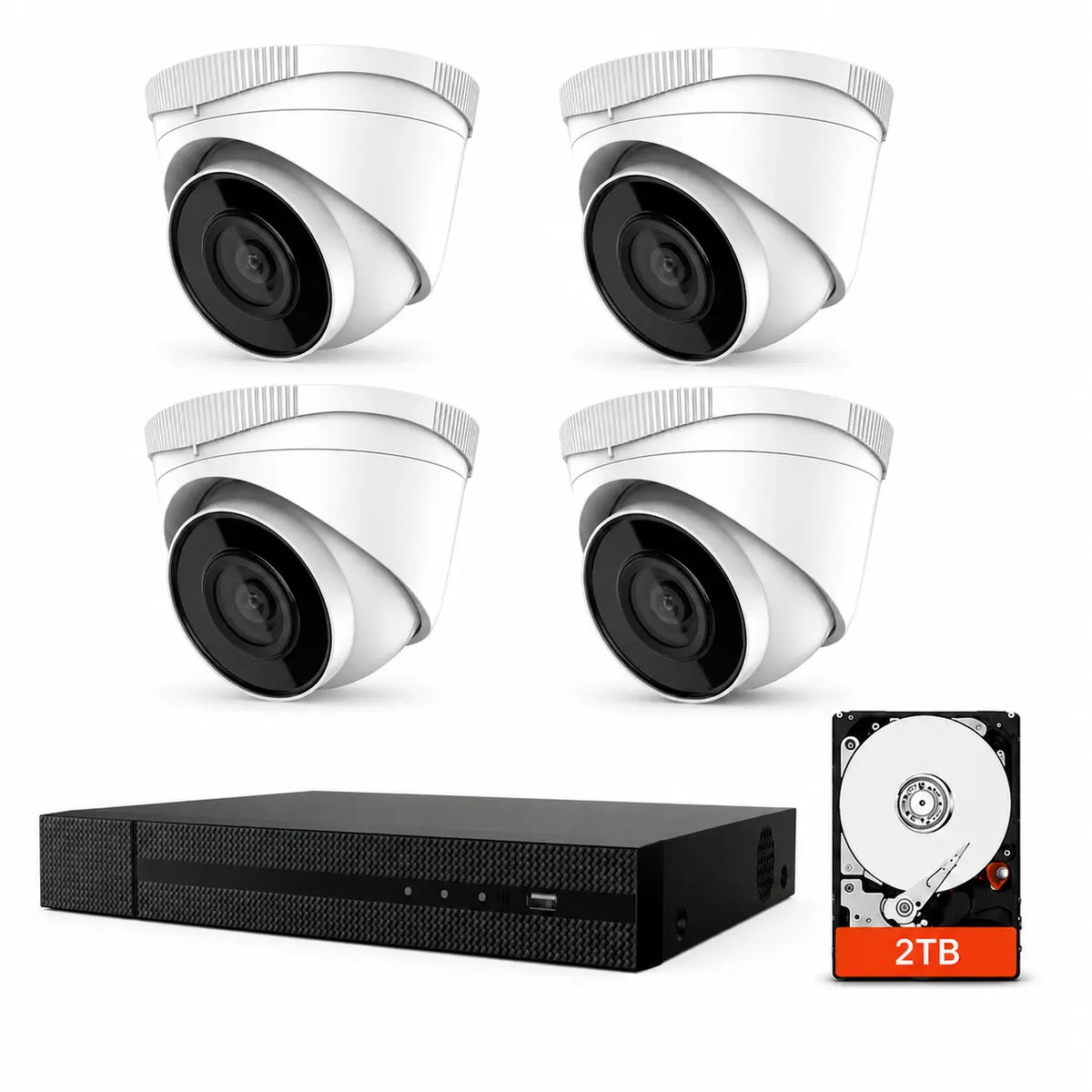

Package Configuration
-
4 × 4MP Turret Network Cameras – IPC-T240H with 2.8 mm fixed lenses
-
1 × 4-Channel PoE NVR – HL-NVR-104MH-C/4P
-
1 × Hard Drive – 2TB HDD
| System Configuration |
| Kit Model |
IK-4244TH-MH/P |
| System Type |
PoE Network Security Camera System |
| Included Cameras |
4 × IPC-T240H with 2.8 mm fixed lenses |
| Included NVR |
1 × HL-NVR-104MH-C/4P |
| Camera Resolution |
4MP (2560 × 1440) |
| Camera Style |
Fixed Turret |
| Included Camera Channels |
4 channels |
| Maximum NVR Channels |
4 IP camera channels |
| Built-in PoE Ports |
4 |
| Remaining Channel Capacity |
No unused recording channels with the included four-camera configuration |
| Included Storage |
2TB HDD |
| Camera Specifications — IPC-T240H |
| Camera Model |
IPC-T240H (2.8 mm) |
| Camera Variant |
IPC-T240H (2.8 mm) (C) |
| Quantity |
4 |
| Camera Type |
4MP Fixed Turret Network Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Maximum Resolution |
2560 × 1440 |
| Maximum Frame Rate |
20 fps at 2560 × 1440; up to 30 fps at supported lower resolutions in 60 Hz mode |
| Lens |
2.8 mm fixed focal lens |
| Field of View |
Horizontal: 98°; vertical: 53.1°; diagonal: 114.7° |
| Aperture |
F2.0 |
| Minimum Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; black and white: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°; tilt: 0° to 75°; rotate: 0° to 360° |
| Supplemental Light |
Smart IR |
| IR Range |
Up to 30 m (98 ft.) |
| IR Wavelength |
850 nm |
| Wide Dynamic Range |
120 dB |
| Image Enhancement |
BLC and 3D DNR |
| Basic Events |
Motion detection, video tampering alarm, and exception |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Region of Interest |
1 fixed region for the main stream |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| API Support |
Open Network Video Interface and ISAPI |
| Power |
12 VDC ± 25%, maximum 5 W; IEEE 802.3af PoE Class 3, maximum 6.5 W |
| Dimensions |
Ø112 × 81.5 mm (Ø4.41" × 3.21") |
| Weight |
Approx. 320 g (0.7 lb.) |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F); humidity 95% or less, non-condensing |
| Protection Rating |
IP67 |
| NVR Specifications — HL-NVR-104MH-C/4P |
| NVR Model |
HL-NVR-104MH-C/4P |
| Specification Model |
NVR-104MH-C/4P (D) |
| Quantity |
1 |
| IP Video Input |
4 channels |
| Human/Vehicle Analysis |
1 channel through Motion Detection 2.0 |
| Incoming Bandwidth |
40 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Decoding Capability |
1 channel at 8MP, 3 channels at 4MP, or 6 channels at 1080p at 30 fps |
| Synchronous Playback |
4 channels |
| HDMI Output |
1 channel, up to 4096 × 2160 at 30 Hz |
| VGA Output |
1 channel, up to 1920 × 1080 at 60 Hz |
| Video Output Mode |
Simultaneous HDMI and VGA output |
| Audio Output |
1-channel RCA |
| Two-Way Audio Interface |
1-channel RCA |
| Network Interface |
1 RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Built-in PoE Ports |
4 RJ45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power Budget |
Up to 50 W |
| PoE Standard |
IEEE 802.3af/at |
| SATA Interfaces |
1 |
| Maximum HDD Capacity |
Up to 8TB |
| USB Interfaces |
2 × USB 2.0 |
| Alarm In/Out |
Not available |
| Power Supply |
48 VDC, 1.35 A |
| Power Consumption |
Maximum 10 W without HDD and with PoE off |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Dimensions |
265 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| Weight |
Maximum 1 kg without HDD (2.2 lb.) |
| Storage Configuration |
| Hard Drive Included |
Yes |
| Included HDD Capacity |
2TB |
| Number of Included HDDs |
1 |
| Storage Type |
Local NVR recording |
| SATA Interfaces |
1 |
| Maximum Supported HDD Capacity |
Up to 8TB |
| Recording Compression |
H.265+/H.265/H.264+/H.264 |
| Recording Retention |
Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |

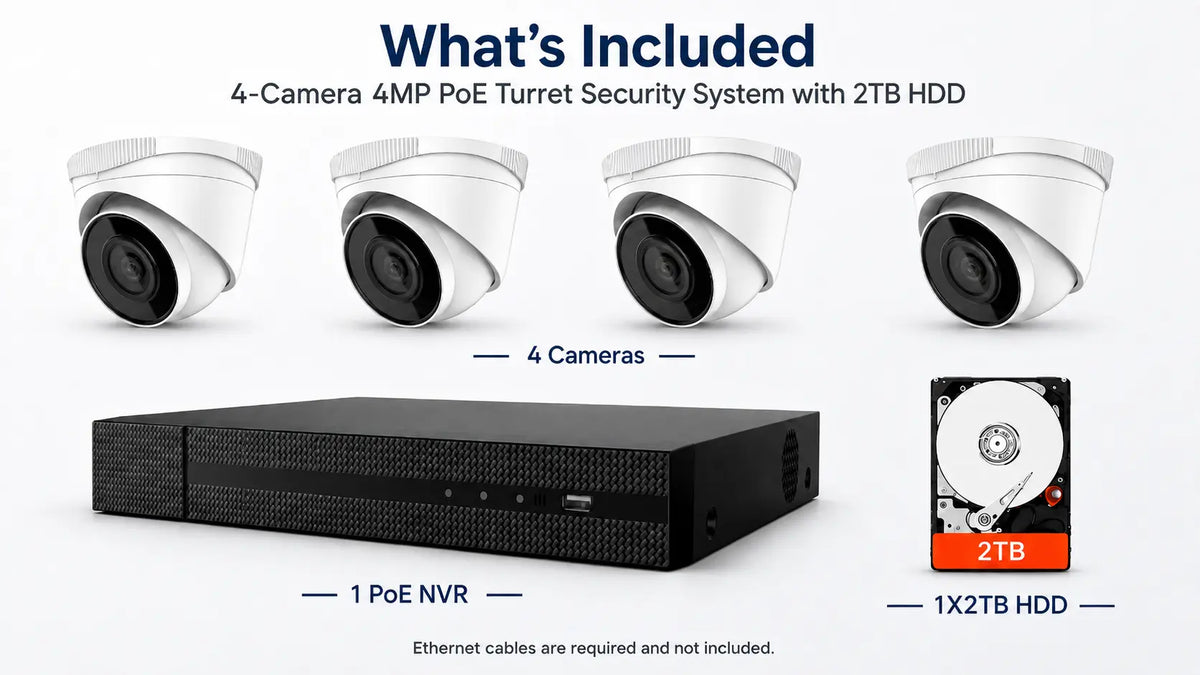

| Package Contents |
| Turret Network Cameras |
4 × IPC-T240H with 2.8 mm fixed lenses |
| PoE Network Video Recorder |
1 × HL-NVR-104MH-C/4P |
| Hard Drive |
1 × 2TB HDD |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many cameras are included in the IK-4244TH-MH/P kit?
The kit includes four IPC-T240H 4MP turret network cameras with 2.8 mm fixed lenses.
Which recorder is included with the system?
The package includes one HL-NVR-104MH-C/4P 4-channel network video recorder with four built-in PoE ports.

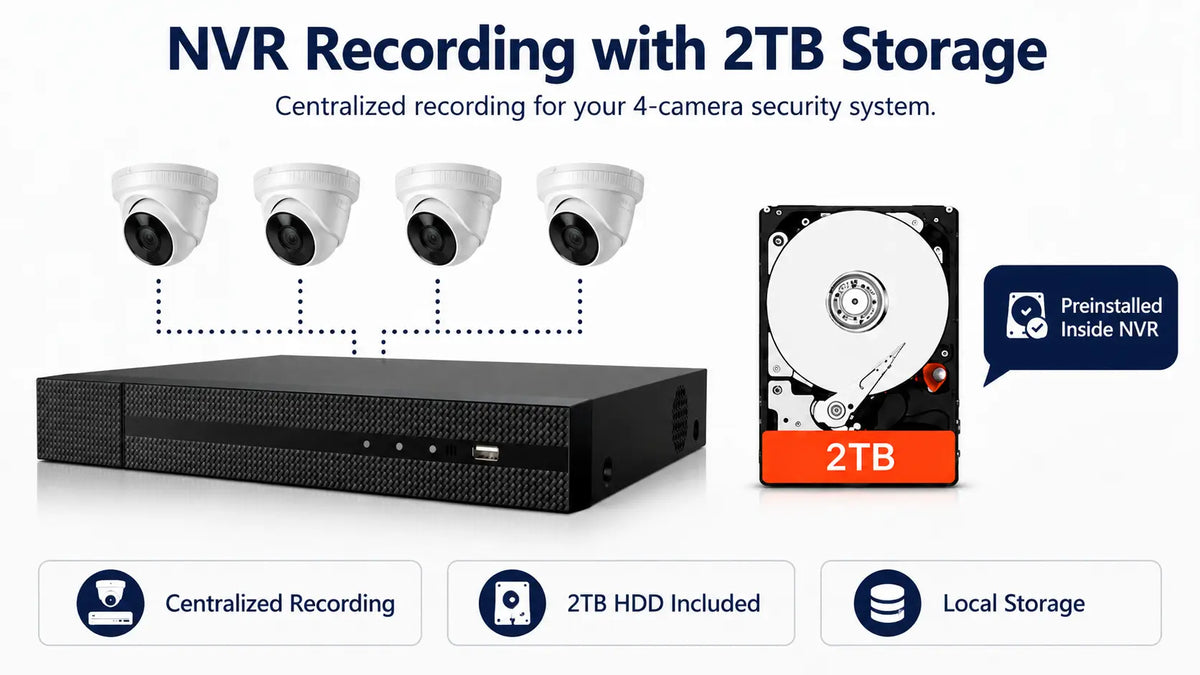

Does the kit include a hard drive?
Yes. The official kit configuration includes one 2TB hard drive for local NVR recording.

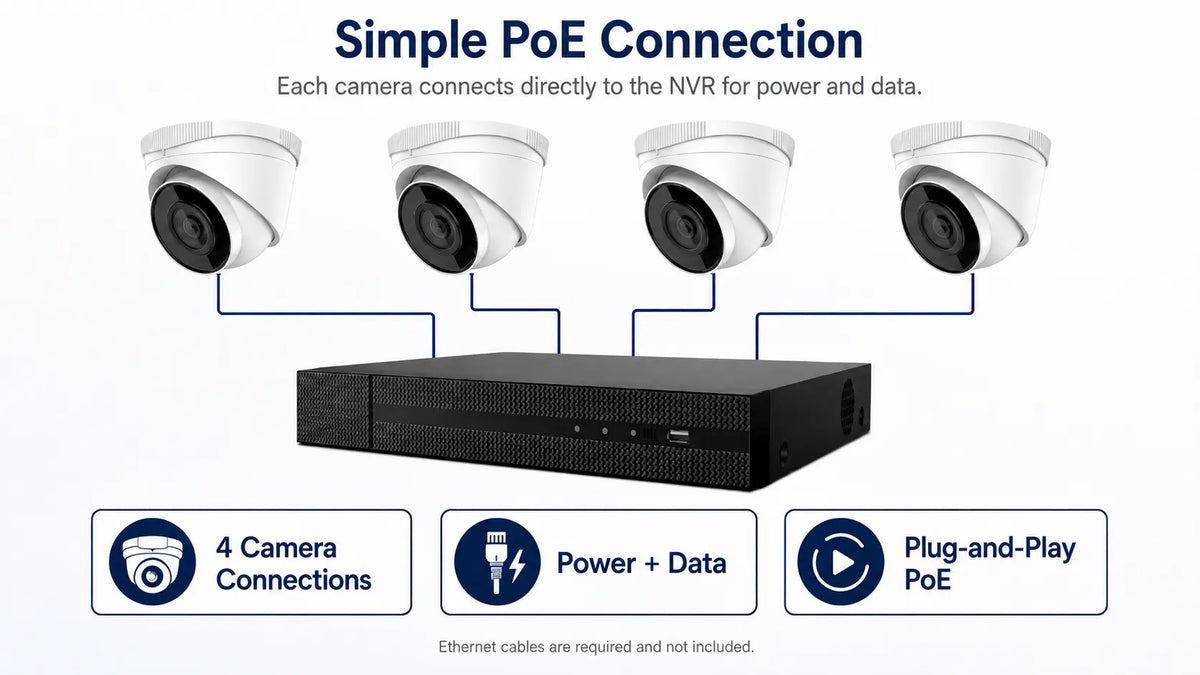

How do the cameras connect to the NVR?
Each camera connects to one of the recorder's four built-in PoE ports using compatible Ethernet cabling for power, video, and data transmission.
Can the cameras be installed outdoors?
Yes. The IPC-T240H cameras carry an IP67 protection rating when installed according to the product and cabling requirements.
Can additional cameras be added to this kit?
The recorder supports a maximum of four IP camera channels, and all four channels are used by the included cameras. Adding more cameras requires a recorder with additional channel capacity.
Can the included storage capacity be upgraded?
The recorder provides one SATA interface and supports one compatible hard drive with a capacity of up to 8TB.

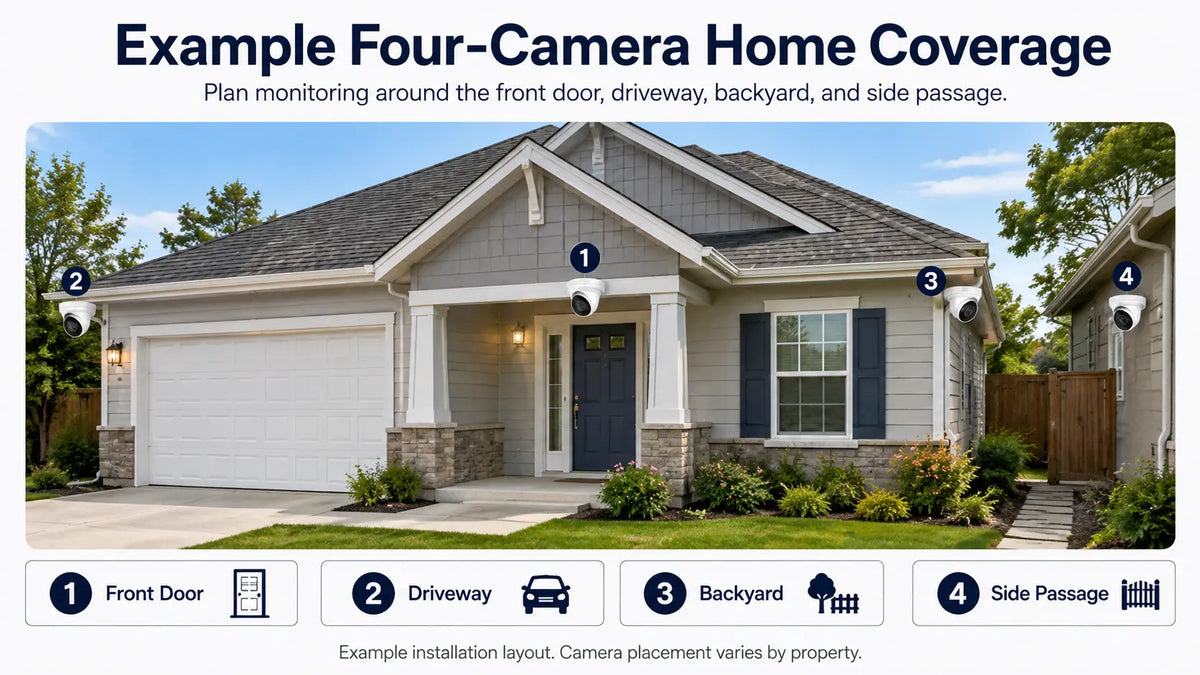

Is this system suitable for home security?
The four-camera configuration can support entrances, driveways, yards, garages, and other defined residential monitoring areas.
Can this kit be used in a small business or retail store?
Yes. The system can support entrances, sales areas, offices, stockrooms, customer areas, and exterior access points at smaller commercial properties.
Does the NVR support human and vehicle analysis?
Yes. The NVR supports Motion Detection 2.0 human and vehicle analysis on one channel.
