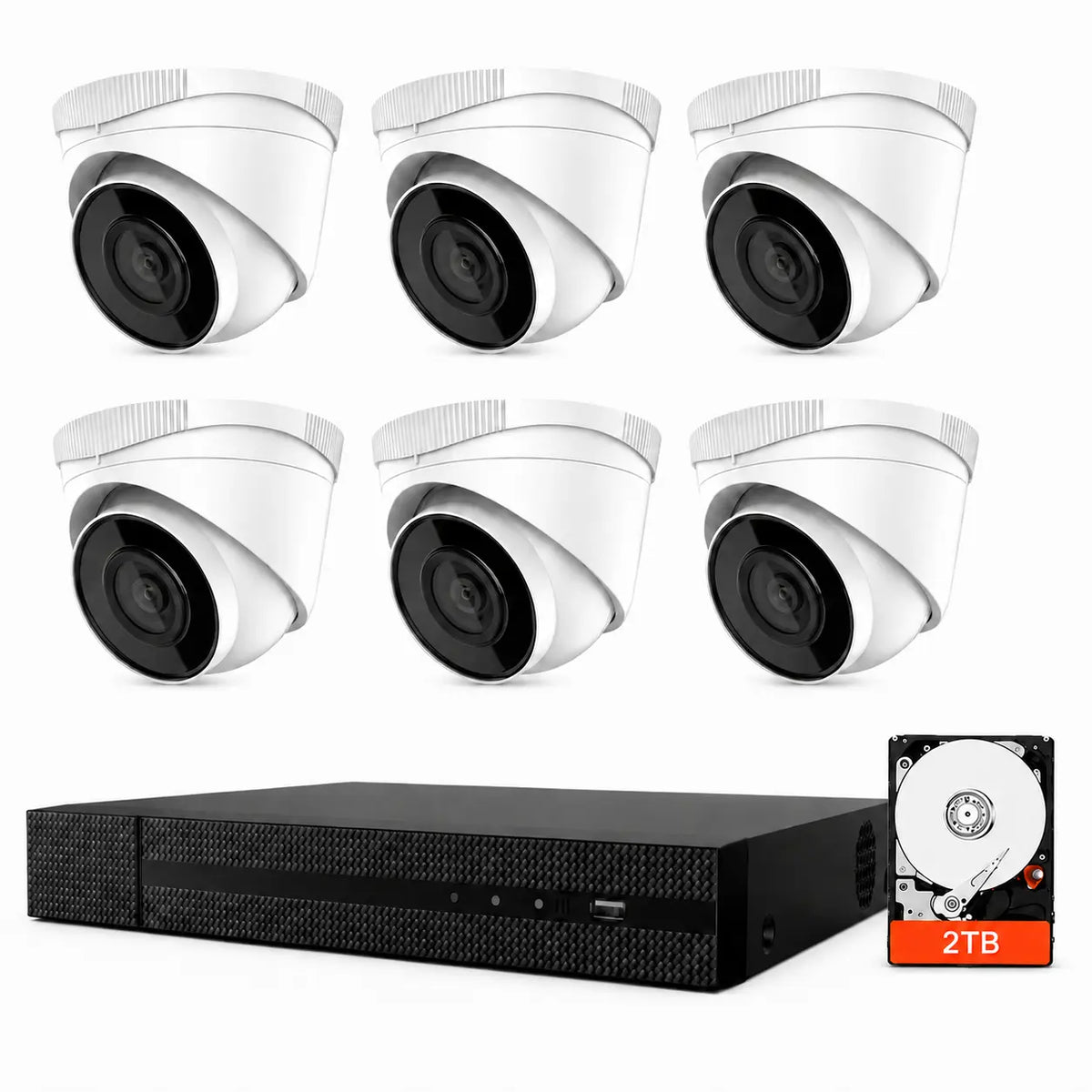

The IK-6284TH-MH/P combines six IPC-T240H 4MP turret cameras with one HL-NVR-208MH-C/8P 8-channel PoE NVR and an included 2TB hard drive. It is suited to homes, offices, retail stores, restaurants, apartment common areas, and other smaller properties that require centralized local video recording.
Each camera features a 2.8 mm fixed lens with a 98° horizontal field of view, Smart IR illumination up to 98 feet, 120 dB WDR, and IP67 weather protection. The NVR provides eight built-in PoE ports, 80 Mbps incoming bandwidth, four-channel human and vehicle analysis, and two available channels for compatible future expansion.

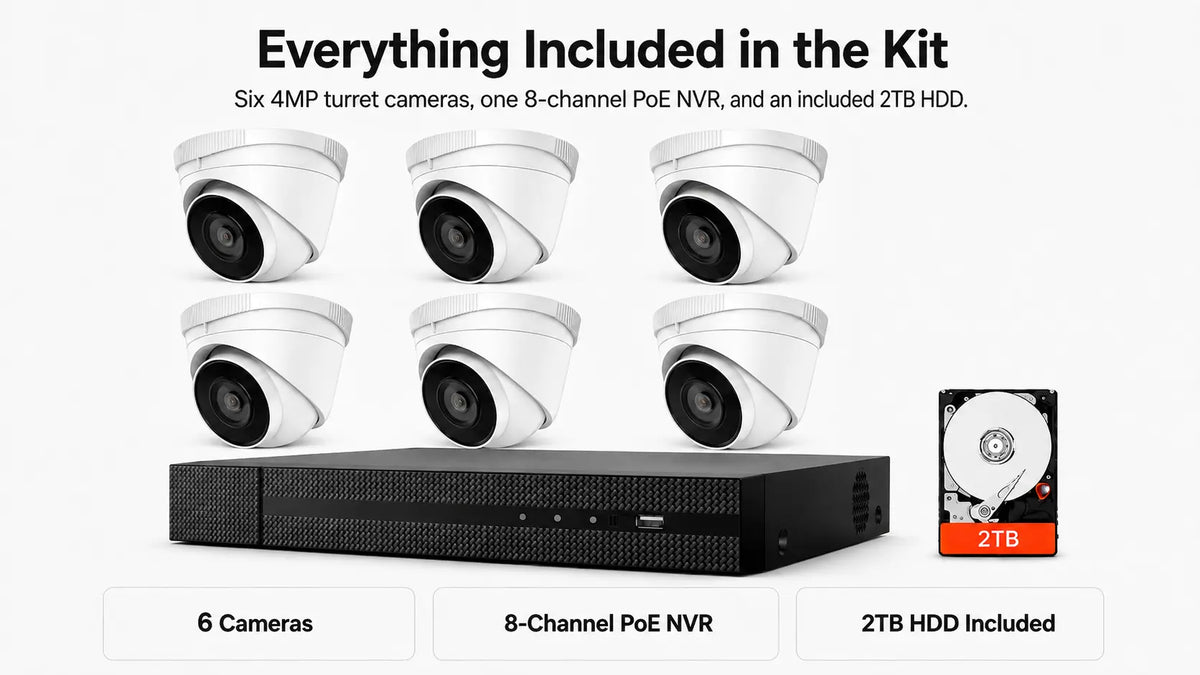

Package Configuration
-
6 × 4MP Turret Network Cameras – IPC-T240H with 2.8 mm fixed lenses
-
1 × 8-Channel PoE NVR – HL-NVR-208MH-C/8P
-
1 × Hard Drive – 2TB HDD
| System Configuration |
| Kit Model |
IK-6284TH-MH/P |
| System Type |
PoE Network Security Camera System |
| Included Cameras |
6 × IPC-T240H with 2.8 mm fixed lenses |
| Included NVR |
1 × HL-NVR-208MH-C/8P |
| Camera Resolution |
4MP (2560 × 1440) |
| Camera Style |
Fixed Turret |
| Included Camera Channels |
6 channels |
| Maximum NVR Channels |
8 IP camera channels |
| Built-in PoE Ports |
8 |
| Remaining Channel Capacity |
Up to 2 additional compatible IP cameras, subject to recorder bandwidth and system configuration |
| Included Storage |
2TB HDD |
| Camera Specifications — IPC-T240H |
| Camera Model |
IPC-T240H (2.8 mm) (C) |
| Quantity |
6 |
| Camera Type |
4MP Fixed Turret Network Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Maximum Resolution |
2560 × 1440 |
| Main Stream Frame Rate |
50 Hz: 20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
60 Hz: 20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720 |
| Lens |
2.8 mm fixed focal lens |
| Field of View |
Horizontal: 98°; vertical: 53.1°; diagonal: 114.7° |
| Aperture |
F2.0 |
| Minimum Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; black and white: 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°; tilt: 0° to 75°; rotate: 0° to 360° |
| Supplemental Light |
Smart IR |
| IR Range |
Up to 30 m (98 ft.) |
| IR Wavelength |
850 nm |
| Wide Dynamic Range |
120 dB |
| Image Enhancement |
BLC and 3D DNR |
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Region of Interest |
1 fixed region for the main stream |
| Basic Events |
Motion detection, video tampering alarm, and exception |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| API Support |
Open Network Video Interface and ISAPI |
| Client Software |
iVMS-4200 and Mobile App |
| Power |
12 VDC ± 25%, maximum 5 W; IEEE 802.3af PoE Class 3, maximum 6.5 W |
| Dimensions |
Ø112 × 81.5 mm (Ø4.41" × 3.21") |
| Weight |
Approx. 320 g (0.7 lb.) |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F); humidity 95% or less, non-condensing |
| Protection Rating |
IP67 |
| NVR Specifications — HL-NVR-208MH-C/8P |
| NVR Model |
HL-NVR-208MH-C/8P |
| Specification Model |
NVR-208MH-C/8P (D) |
| Quantity |
1 |
| Motion Detection 2.0 |
Supported |
| Human/Vehicle Analysis |
4 channels |
| IP Video Input |
8 channels |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Decoding Capability |
1 channel at 8MP, 3 channels at 4MP, or 6 channels at 1080p at 30 fps |
| Synchronous Playback |
8 channels |
| HDMI Output |
1 channel, up to 4096 × 2160 at 30 Hz |
| VGA Output |
1 channel, up to 1920 × 1080 at 60 Hz |
| Video Output Mode |
Simultaneous HDMI and VGA output |
| Audio Output |
1-channel RCA |
| Two-Way Audio Interface |
1-channel RCA |
| Network Interface |
1 RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Built-in PoE Ports |
8 RJ45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power Budget |
Up to 80 W |
| PoE Standard |
IEEE 802.3af/at |
| SATA Interfaces |
2 |
| Maximum Capacity per HDD |
Up to 8TB |
| Maximum Supported Storage |
Up to 16TB across two supported hard drives |
| USB Interfaces |
2 × USB 2.0 |
| Alarm In/Out |
Not available on the standard model |
| Power Supply |
48 VDC, 2.5 A |
| Power Consumption |
Maximum 15 W without HDD and with PoE off |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Chassis |
1U chassis |
| Dimensions |
385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight |
Maximum 2.6 kg without HDD (5.7 lb.) |
| Storage Configuration |
| Hard Drive Included |
Yes |
| Included HDD Capacity |
2TB |
| Number of Included HDDs |
1 |
| Storage Type |
Local NVR recording |
| SATA Interfaces |
2 |
| Maximum Capacity per HDD |
Up to 8TB |
| Maximum Supported Storage |
Up to 16TB across two supported hard drives |
| Recording Compression |
H.265+/H.265/H.264+/H.264 |
| Recording Retention |
Varies by camera quantity, resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents |
| Turret Network Cameras |
6 × IPC-T240H with 2.8 mm fixed lenses |
| PoE Network Video Recorder |
1 × HL-NVR-208MH-C/8P |
| Hard Drive |
1 × 2TB HDD |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many cameras are included in the IK-6284TH-MH/P kit?
The kit includes six IPC-T240H 4MP turret network cameras with 2.8 mm fixed lenses.
Which recorder is included with the system?
The package includes one HL-NVR-208MH-C/8P 8-channel network video recorder with eight built-in PoE ports.
Does the kit include a hard drive?
Yes. The official kit configuration includes one 2TB hard drive for centralized local video recording.

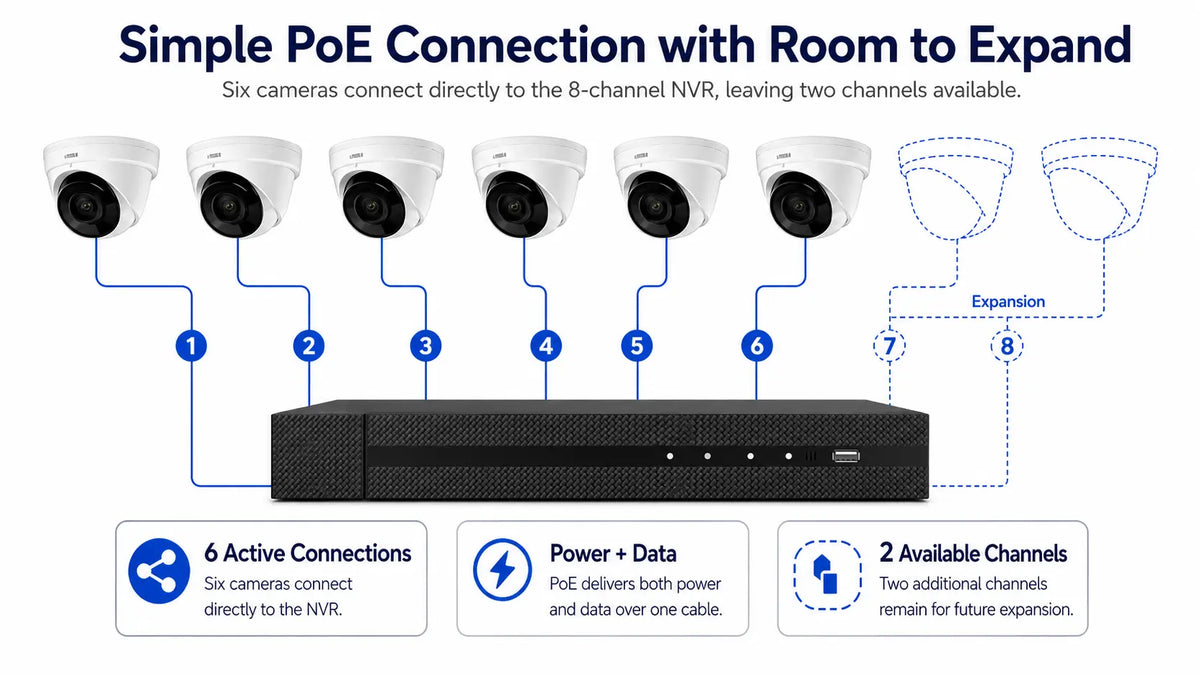

How do the cameras connect to the NVR?
Each camera connects to one of the recorder's built-in PoE ports using compatible Ethernet cabling for power, video, and data transmission.
Can the cameras be installed outdoors?
Yes. The IPC-T240H cameras carry an IP67 protection rating when installed according to the product and cabling requirements.
Can additional cameras be added to this kit?
Yes. The recorder supports eight IP camera channels. With six cameras included, up to two additional compatible cameras may be added within the recorder's bandwidth limits.
Can the NVR storage capacity be expanded?
The recorder provides two SATA interfaces and supports up to 8TB per compatible hard drive, allowing up to 16TB across two supported drives.
How long will the included 2TB hard drive retain recordings?
Recording retention depends on resolution, frame rate, bitrate, compression, recording schedule, camera quantity, and scene activity.

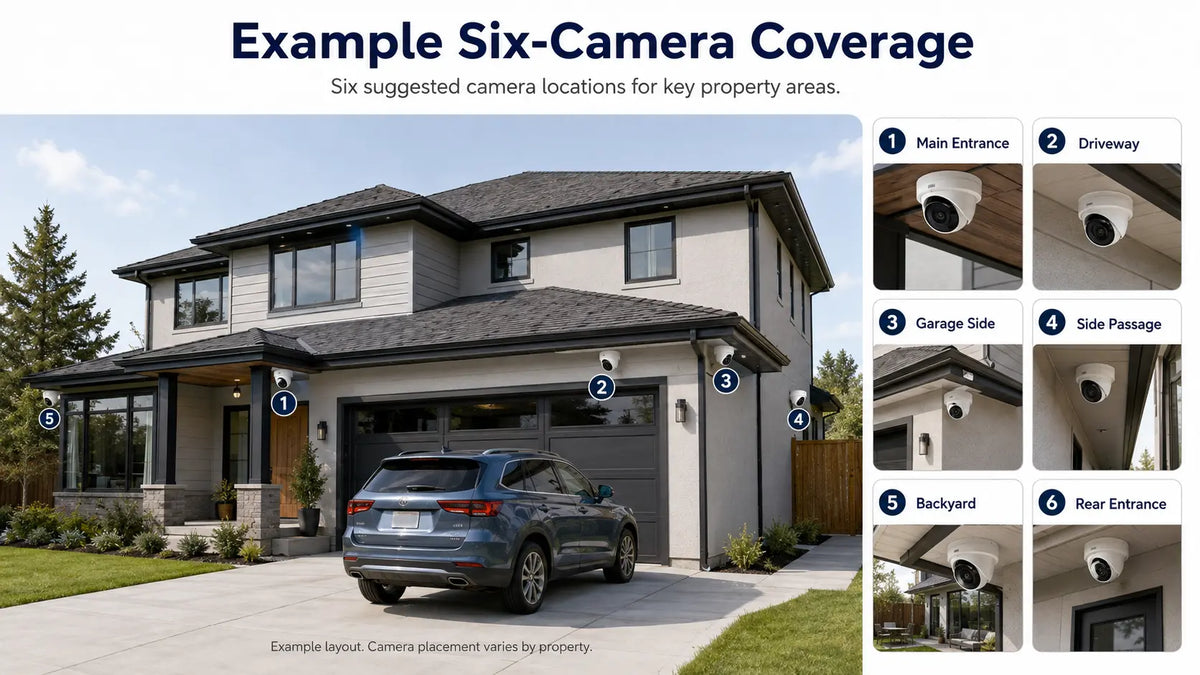

Is this system suitable for homes and small businesses?
The six-camera configuration can support entrances, driveways, offices, sales areas, stockrooms, common areas, and exterior access points.
Does the system support human and vehicle analysis?
Yes. The included NVR supports Motion Detection 2.0 human and vehicle analysis on up to four channels.
