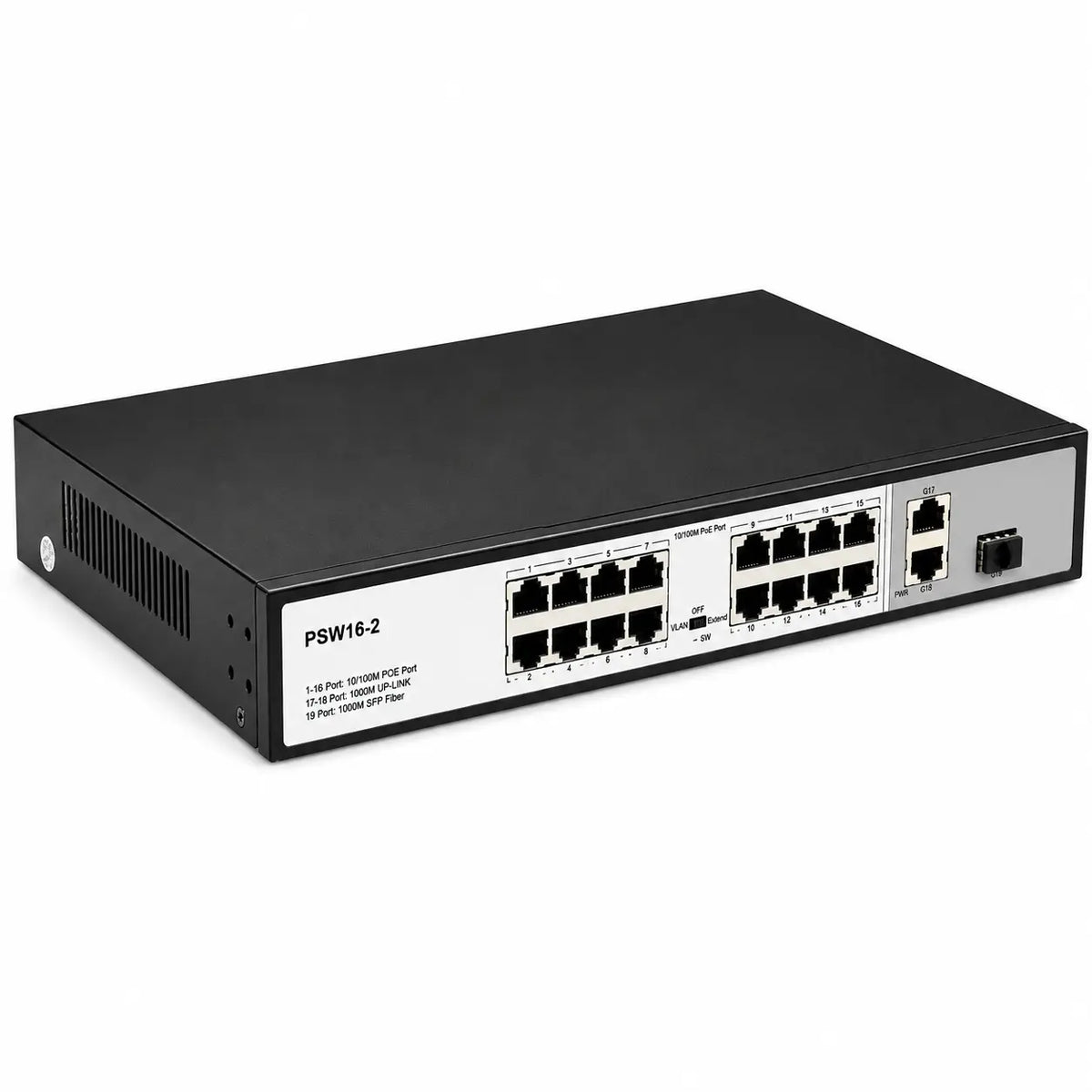

This 16-port PoE+ switch is designed for surveillance and business networks that need to power and connect up to sixteen compatible PoE devices. The 10/100 Mbps PoE ports carry network data and power over Ethernet cabling, reducing the need for separate power adapters at camera locations.
Two dedicated Gigabit Ethernet uplink ports connect the switch to a compatible NVR, router, or upstream network without using any of the sixteen powered device ports. This keeps the full PoE port capacity available for cameras, VoIP phones, and other supported network equipment.
The switch supports IEEE 802.3af and IEEE 802.3at PoE, providing up to 30W from an individual port with a 250W total PoE power budget. Automatic powered-device detection supplies power to compatible PoE equipment, while passive 24V PoE devices are not supported.
For cameras installed farther from the network cabinet, Extend Mode increases supported transmission distance from 100 meters to as much as 250 meters, with network speed reduced to 10 Mbps. Plug-and-play operation, a built-in power supply, metal housing, LED indicators, and rack-mount installation support centralized multi-camera deployments.
Key Benefits
-
Supports Up to Sixteen PoE Devices – Provides centralized network connectivity and PoE power for larger camera systems without requiring separate local power adapters at each compatible device.
-
Dedicated Gigabit Uplinks – Two Gigabit ports connect a compatible NVR, router, or upstream network without consuming any of the sixteen PoE camera ports.
-
250W Shared PoE Budget – Provides up to 30W from an individual port while supporting connected devices within the switch's total 250W power capacity.
-
Power and Data Over Ethernet – Carries network traffic and PoE power over the same Ethernet cable to simplify compatible camera and device installations.
-
Longer Camera Cable Runs – Extend Mode supports connections up to 250 meters when standard Ethernet distance is insufficient, with the data rate reduced to 10 Mbps.
-
Rack-Mount Plug-and-Play Deployment – Requires no software configuration for normal setup and installs in compatible equipment racks for centralized surveillance networks.
Recommended Applications
- Up to 16-Camera PoE Surveillance Systems
- Warehouse Camera Networks
- Retail Store Surveillance Systems
- Office Building Camera Networks
- School and Campus Surveillance
- Apartment Building Camera Systems
- Restaurant and Hospitality Networks
- Long-Distance IP Camera Installations
- Centralized NVR Deployments
- Commercial Equipment Racks
