4-Port PoE+ Switch with 2 Uplinks, 60W, Fast Ethernet
4-Port PoE+ Switch with 2 Uplinks, 60W, Fast Ethernet
$29.99

4-Port PoE+ Switch with 2 Uplinks, 60W, Fast Ethernet

Plug-and-play PoE+ switch for up to four compatible IP cameras, with two dedicated uplinks and Extend Mode for longer cable runs.
In stock
$29.99
Choose your port count
4-Port PoE 8-Port PoE 16-Port PoE 24-Port PoE
Not sure which size fits your setup? Ask us before ordering.
FREE Standard Shipping on Orders $70+ within the contiguous U.S.

Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]

Installer or Dealer? Request Trade Pricing.

✓ 4 × 10/100 Mbps PoE+ ports
✓ 2 dedicated Ethernet uplinks
✓ 60W total PoE power budget
✓ Up to 30W per PoE port
✓ Extend Mode up to 250 m
✓ Plug-and-play operation

Chicago-Area Warehouse
Same-Day Processing Available
1-Year Warranty
30-Day Return Window

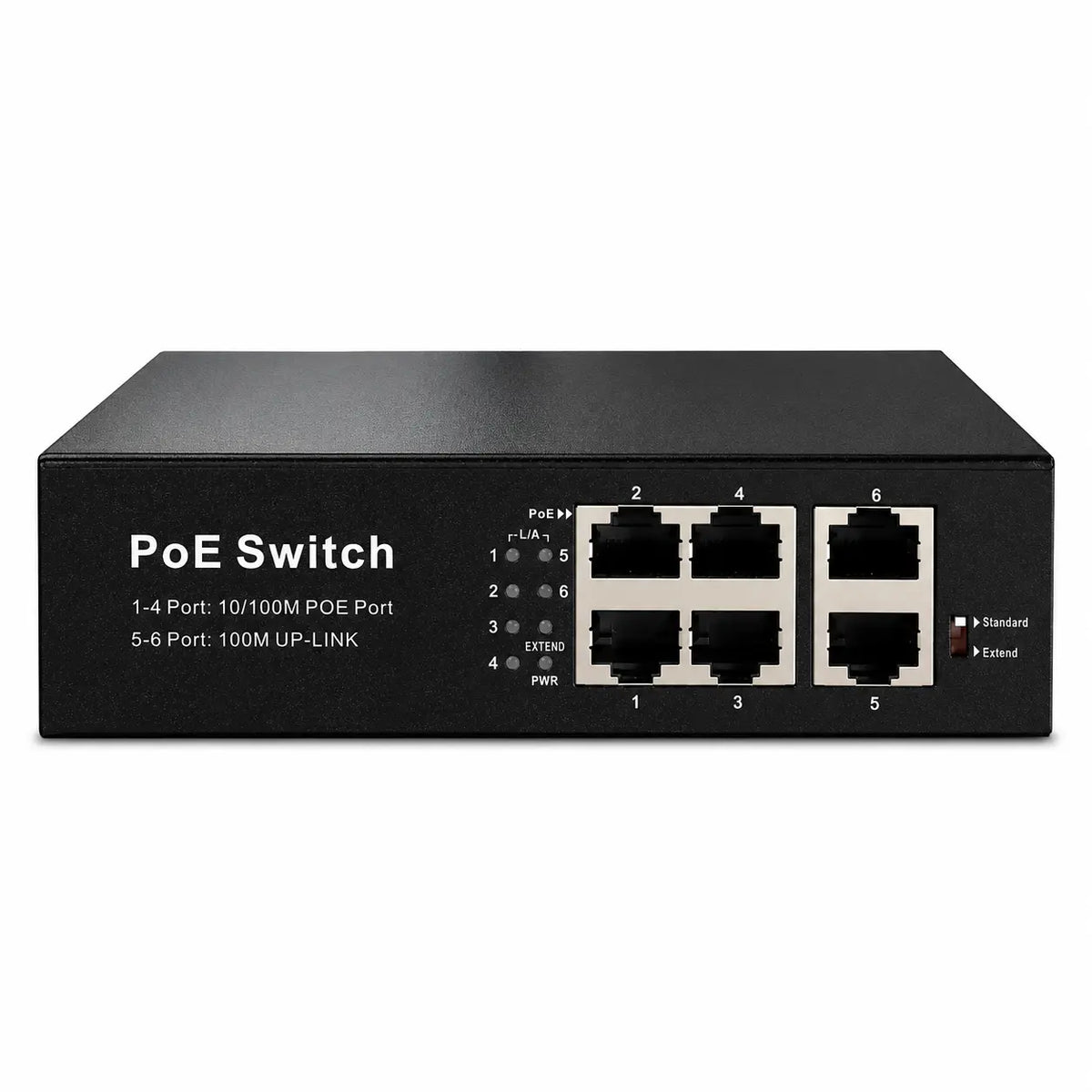

This 6-port PoE+ switch is designed for small surveillance and business networks that need to power and connect up to four compatible PoE devices. Four 10/100 Mbps PoE ports carry both network data and power over Ethernet cabling, helping reduce the need for separate power adapters at camera locations.

Two dedicated 10/100 Mbps uplink ports connect the switch to a compatible NVR, router, or upstream network without using the four powered device ports. This keeps all four PoE ports available for cameras, VoIP phones, or other supported equipment.

The switch supports IEEE 802.3af and IEEE 802.3at PoE, with up to 30W available from an individual port and a 60W total PoE power budget. Automatic powered-device detection supplies power to compatible PoE equipment, while passive 24V PoE devices are not supported.

For cameras located farther from the network equipment, Extend Mode increases supported transmission distance from 100 meters to as much as 250 meters, with network speed reduced to 10 Mbps. Plug-and-play operation requires no switch-level configuration, making the switch practical for straightforward 1–4 camera installations.

Key Benefits

  • Power and Data Over One Cable – Supplies compatible cameras with network connectivity and PoE power through Ethernet cabling, reducing the need for separate local power adapters.
  • Supports Up to Four PoE Devices – Four powered ports suit small camera systems and other installations that need a limited number of PoE connections.
  • Dedicated NVR and Network Uplinks – Two additional Ethernet ports connect a compatible recorder, router, or upstream network without consuming the four PoE device ports.
  • 60W Shared PoE Budget – Provides up to 30W from an individual port while supporting connected devices within the switch's 60W total power limit.
  • Longer Camera Cable Runs – Extend Mode supports connections up to 250 meters when standard Ethernet distance is insufficient, with data speed reduced to 10 Mbps.
  • No Switch Configuration Required – Plug-and-play operation eliminates the need for software installation or switch-level configuration during normal deployment.

Recommended Applications

  • 1–4 Camera PoE Surveillance Systems
  • Small Retail Store Camera Networks
  • Restaurant Security Systems
  • Small Office Surveillance
  • Warehouse Entry Cameras
  • Apartment Common-Area Cameras
  • VoIP Phone Installations
  • Remote IP Camera Connections
Network Interface
PoE Ports 4 × 10/100 Mbps Ethernet PoE+ ports
Uplink Ports 2 × 10/100 Mbps Ethernet uplink ports
Total Ethernet Ports 6
PoE
PoE Standards IEEE 802.3af, IEEE 802.3at
Maximum Power per Port Up to 30 W
Total PoE Power Budget 60 W
Powered Device Detection Automatic detection and power delivery for compatible PoE powered devices
Passive PoE Compatibility Does not support passive 24 V PoE devices
Transmission
Standard Transmission Distance Up to 100 m
Extend Mode Up to 250 m; transmission speed is reduced to 10 Mbps when Extend Mode is enabled
General
Product Type 4-Port PoE+ Switch with 2 Uplink Ports
Configuration Plug and play; no software installation or configuration required
Housing Metal enclosure
Power Supply Built-in power adapter
LED Indicators PoE power and link/activity status

Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.

What is this 6-port PoE+ switch used for?

The switch provides network connectivity and PoE power for up to four compatible devices, making it suitable for small IP camera systems, VoIP phones, and other standards-based PoE equipment.

How many PoE cameras can the switch connect?

It provides four PoE+ ports and can connect up to four compatible PoE cameras or other powered devices. Their combined power requirement must remain within the 60W total PoE budget.

What are the two uplink ports used for?

The two dedicated 10/100 Mbps uplink ports can connect the switch to a compatible NVR, router, or upstream network without using the four PoE device ports.

How far can the switch extend a PoE connection?

Standard transmission supports up to 100 meters. Extend Mode can increase the distance to as much as 250 meters, with network speed reduced to 10 Mbps while the mode is enabled.

Does the switch support passive 24V PoE equipment?

No. The switch is designed for compatible IEEE 802.3af and IEEE 802.3at powered devices and does not support passive 24V PoE equipment.
